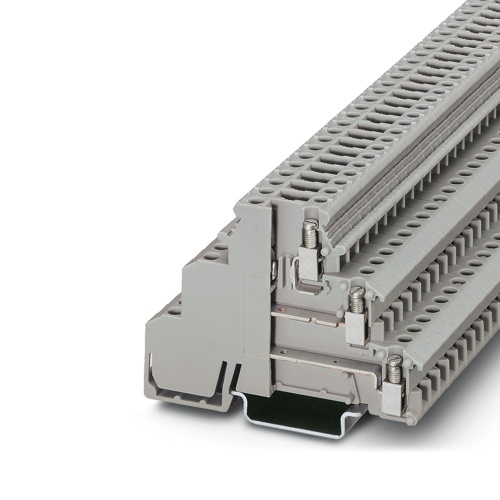

Phoenix Contact 2774237 Initiator/actuator terminal block DIKD 1,5-TG
Normally In Stock
Code: 1741
DIKD 1,5-TG Phoenix Contact 2774237 Phoenix Contact DIKD 1.5-TG, Gray Three Level Sensor-Actuator 6.2 mm Removable Disconnect Terminal Block with 3 feed through levels (screw connection), 250 V, 30 A, AWG: 24 - 12 (Sold in packs of 50).
Condition: New
Usually ships within 7-14 days. Call for ship time.$13.51
Sale Price
$11.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2774237 The initiator/actuator terminal block has specific parameters that determine its electrical capabilities, with the type of plug used identifying both voltage and current ratings, set at 250 V nominal and 15 A nominal. It features multiple connection methods across different levels, including screw connections for rated cross sections ranging from 0.2 mm² to 4 mm², all secured using screw connections. The mounting options include NS 35/7,5 and NS 35/15, with a standard color designation of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
6
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
30 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Sensor-Acuator Terminal Block
Features
Terminal blocks with red and green LEDs are available for optical signaling of the initiator and actuator wiring
