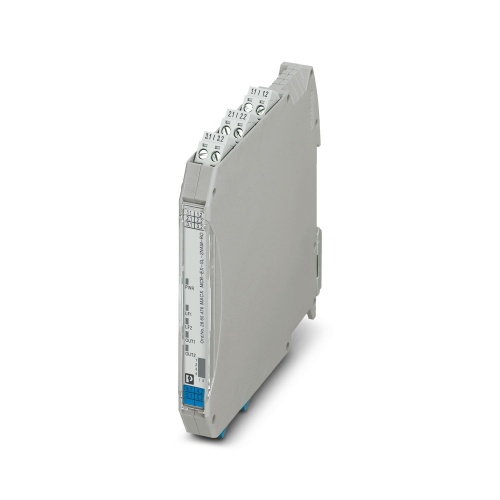

Phoenix Contact 2865476 Isolation switch amplifier MACX MCR-EX-SL-2NAM-RO
Normally In Stock
Code: 17642
MACX MCR-EX-SL-2NAM-RO Phoenix 2865476 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$302.58
Sale Price
$252.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

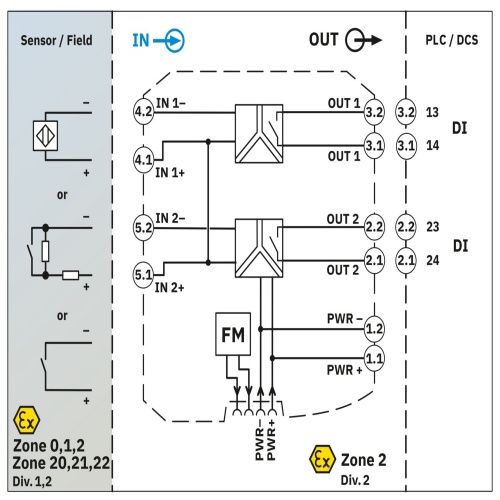

Phoenix Contact 2865476 The Exi-NAMUR isolating amplifier is a two-channel device used for proximity sensor and switch operation in explosive environments, allowing safe signal transmission through relay outputs with N/O contacts to an isolated zone where line faults can be detected, providing 3-way isolation and meeting the SIL 2 standard.
Specifications
Safety Connection Method
Screw connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Safety Contact Type
1 N-O contact per channel
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
Up to SIL 2 according to IEC 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply and error indication possible via DIN rail connector
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
3-way electrical isolation
Direction of operation can be selected (operating or closed circuit current behavior)
Relay signal output (N/O contact)
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
2-channel
