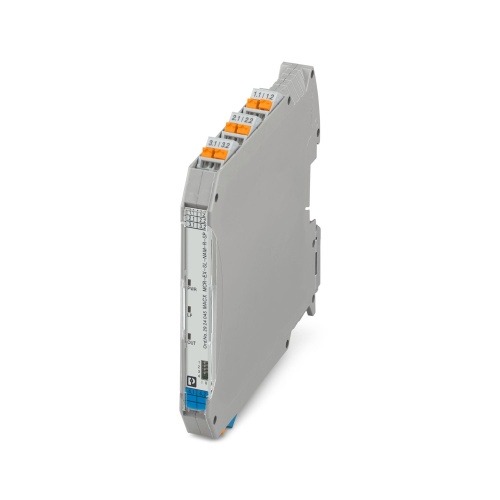

Phoenix Contact 2924045 Isolation switch amplifier MACX MCR-EX-SL-NAM-R-SP
Normally In Stock
Code: 17643
MACX MCR-EX-SL-NAM-R-SP Phoenix 2924045 Isolation amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$241.01
Sale Price
$200.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2924045 The ExiNAMUR isolation amplifier is designed for use in hazardous areas where proximity sensors and switches operate; it transfers signals through a changeover contact on the relay output to a safe zone. This system incorporates line fault detection, three-way isolation, and achieves a SIL rating of 2.
Specifications
Safety Connection Method
Push-in connection
Safety Contact Type
1 PDT
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Sub Component
Isolating switch transf.
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Power supply and error indication possible via DIN rail connector

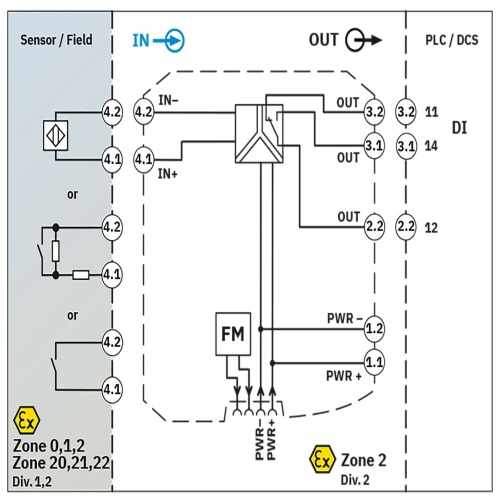

Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
Signal output relay (changeover contact)
Direction of operation can be selected (operating or closed circuit current behavior)
3-way electrical isolation
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
Downloads
Code: 17643
Phoenix Contact 2924045 Isolation switch amplifier MACX MCR-EX-SL-NAM-R-SP
$241.01
Sale Price
$200.84
