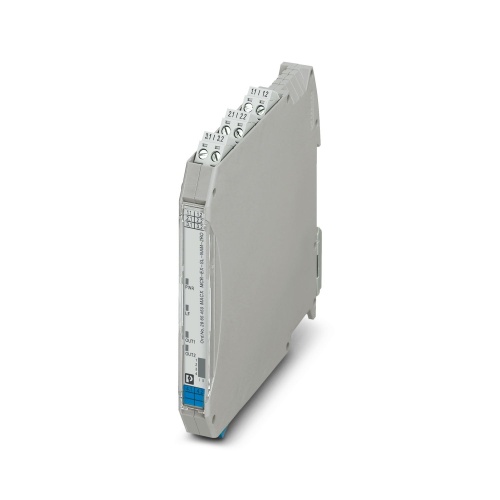

Phoenix Contact 2865450 Isolation switch amplifier MACX MCR-EX-SL-NAM-2RO
Normally In Stock
Code: 17644
MACX MCR-EX-SL-NAM-2RO Phoenix 2865450 Isolation amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$263.44
Sale Price
$219.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2865450 The Ex i NAMUR isolating amplifier is designed for use in hazardous areas near proximity sensors and switches requiring Ex certification. It safely routes signals through two N/O relay outputs into a non-hazardous zone where they can be monitored without risking exposure to explosive atmospheres. Additionally, this device features line fault detection and 3-way isolation, as well as SIL 2 compliance for enhanced safety in applications involving potentially hazardous environments.
Specifications
Safety Connection Method
Screw connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Safety Contact Type
2 N-O contacts
Sub Component
Isolating switch transf.
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Power supply and error indication possible via DIN rail connector
4-way electrical isolation
Direction of operation can be selected (operating or closed circuit current behavior)
2 relay signal outputs (N/O contact)
output 2 can also be used as an error signaling output
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
