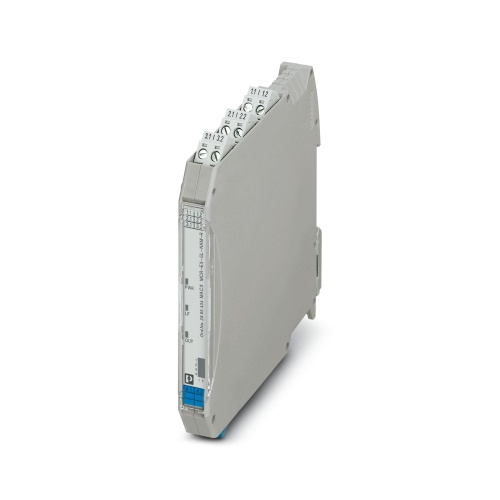

Phoenix Contact 2865434 Isolation switch amplifier MACX MCR-EX-SL-NAM-R
Normally In Stock
Code: 17646
MACX MCR-EX-SL-NAM-R Phoenix 2865434 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$241.01
Sale Price
$200.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

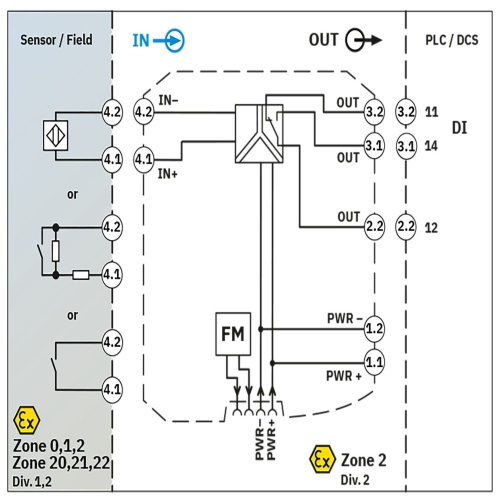

Phoenix Contact 2865434 The Ex i NAMUR isolation amplifier is designed for use in hazardous areas where proximity sensors and switches need to be operated while minimizing the risk of explosion. The device routes signals from these sensors to a secure area via a relay output with changeover contacts, providing line fault detection capabilities as well as 3-way isolation. Additionally, it meets SIL 2 standards for safety integrity level, ensuring reliable operation in potentially explosive environments.
Specifications
Safety Connection Method
Screw connection
Safety Contact Type
1 PDT
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Sub Component
Isolating switch transf.
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Power supply and error indication possible via DIN rail connector
3-way electrical isolation
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
Signal output relay (changeover contact)
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
Direction of operation can be selected (operating or closed circuit current behavior)
