Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

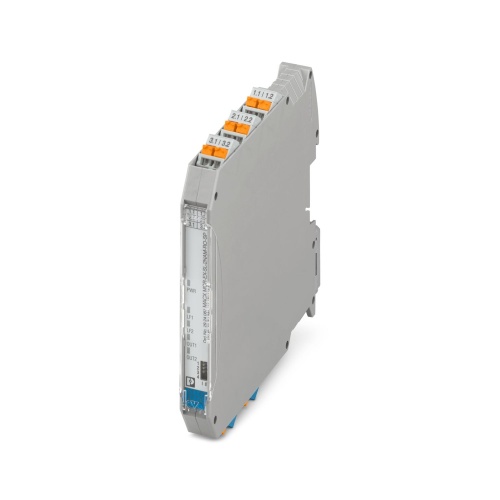

Phoenix Contact 2924087 Isolation switch amplifier MACX MCR-EX-SL-2NAM-RO-SP
Normally In Stock
Code: 17647
MACX MCR-EX-SL-2NAM-RO-SP Phoenix 2924087 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$302.58
Sale Price
$252.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

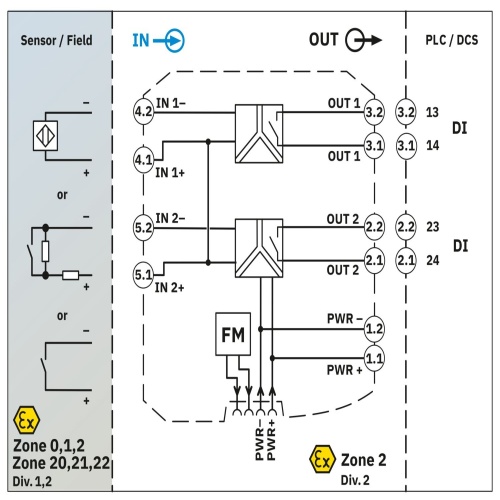

Phoenix Contact 2924087 The ExINAMUR is a 2-channel isolating amplifier designed for use in explosive environments to operate proximity sensors and switches in safe areas, while isolating line faults using LFD and achieving three-way isolation with SIL 2 certification.
Specifications
Safety Connection Method
Push-in connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Safety Contact Type
1 N-O contact per channel
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply and error indication possible via DIN rail connector
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
3-way electrical isolation
Direction of operation can be selected (operating or closed circuit current behavior)
Relay signal output (N/O contact)
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
2-channel
