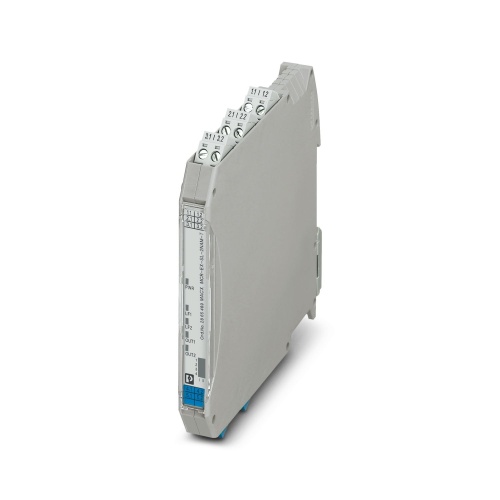

Phoenix Contact 2865489 Isolation switch amplifier MACX MCR-EX-SL-2NAM-T
Normally In Stock
Code: 17652
MACX MCR-EX-SL-2NAM-T Phoenix 2865489 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$326.52
Sale Price
$272.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

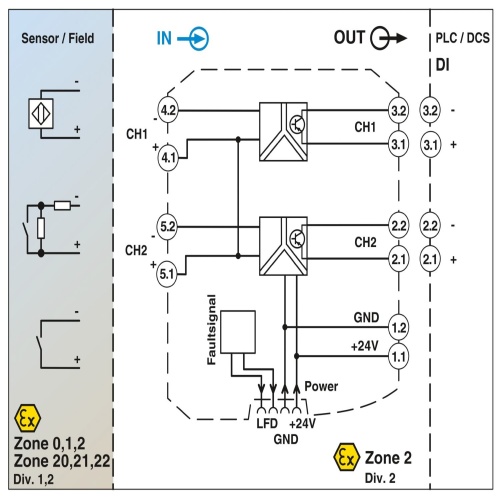

Phoenix Contact 2865489 The ExiNAMUR isolating amplifier is a 2-channel device used for operating proximity sensors and switches in Ex (explosion-proof) areas. It transmits signals from these sensors via passive transistor outputs to a safe area, providing protection against potential electrical shocks or arcs. This device also features line fault detection (LFD) and 3-way isolation, with a SIL 2 rating indicating its ability to meet certain safety standards for use in hazardous environments.
Specifications
Safety Connection Method
Screw connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Sub Component
Isolating switch transf.
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply and error indication possible via DIN rail connector
Transistor signal output (passive)
up to 5 kHz
Direction of operation can be selected (operating or closed circuit current behavior)
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
3-way electrical isolation
2-channel
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
