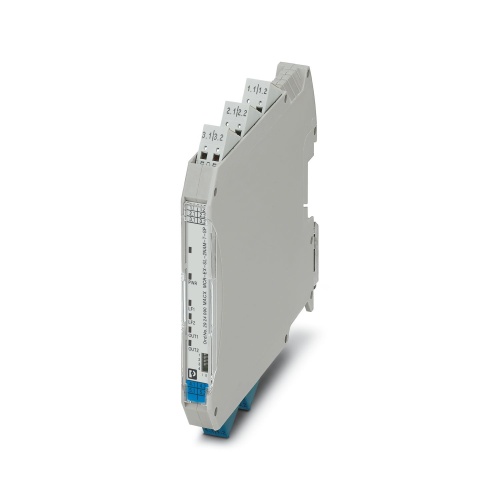

Phoenix Contact 2924090 Isolation switch amplifier MACX MCR-EX-SL-2NAM-T-SP
Normally In Stock
Code: 17653
MACX MCR-EX-SL-2NAM-T-SP Phoenix 2924090 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$326.52
Sale Price
$272.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

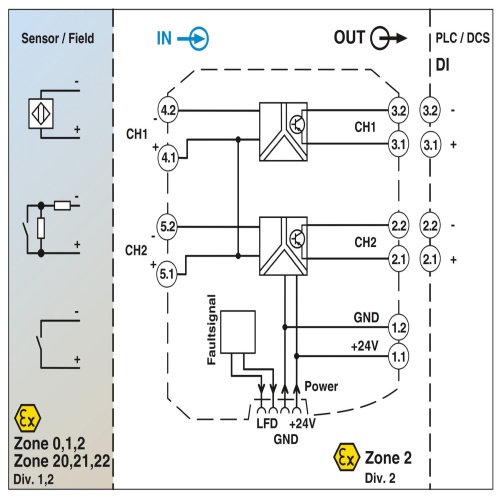

Phoenix Contact 2924090 The Ex Inamur isolating amplifier is a 2-channel device designed for use in explosive atmospheres, enabling the operation of proximity sensors and switches within designated areas while ensuring safe separation from hazardous zones through passive transistor outputs, incorporating line fault detection with 3-way isolation and meeting SIL 2 standards.
Specifications
Safety Connection Method
Push-in connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (not assessed by UL)
Manufacturer
Phoenix Contact
Component
Isolation amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Power supply and error indication possible via DIN rail connector
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
Transistor signal output (passive)
up to 5 kHz
Direction of operation can be selected (operating or closed circuit current behavior)
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
3-way electrical isolation
2-channel
