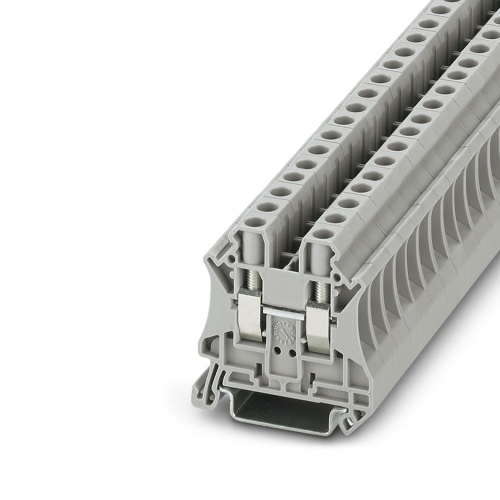

Phoenix Contact 3044131 Feed-through terminal block UT 6
Normally In Stock
Code: 1769
UT 6 Phoenix Contact 3044131 Phoenix Contact UT 6, Terminal Block 8.2mm Gray Single through screw connection, 1000V, 57A, 8-24AWG
Condition: New
Usually ships within 7-14 days. Call for ship time.$1.86
Sale Price
$1.55
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044131 The feed-through terminal block features a nominal voltage of 1000 V and a maximum current rating of 41 A, accommodating two connections via screw fastening. The cross-sectional area ranges from 0.2 mm² to 10 mm² and is rated for a maximum rating of 6 mm². The mounting type includes NS 35/7,5 and NS 35/15 options, while the color coding is standard gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Tested for railway applications
