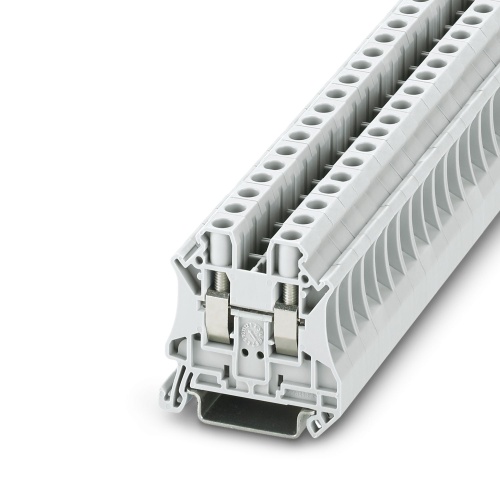

Phoenix Contact 3045198 Feed-through terminal block UT 6 WH
Normally In Stock
Code: 1773
UT 6 WH Phoenix Contact 3045198 Phoenix Contact UT 6 WH, Terminal Block (Sold in packs of 50) 8.2mm White Single through screw connection, 1000V, 57A, 8-24AWG
Condition: New
Usually Ships Same day or Next Day$1.98
Sale Price
$1.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045198 A feed-through terminal block with a nominal voltage of 1000V and a maximum current rating of 41A is available, featuring two connection points secured through screw connections. The rated cross-sectional area is 6mm2, spanning from 0.2mm2 to 10mm2, and can be mounted using NS35/7.5 or NS35/15 mounting types, with a white color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Amperage
41 Amp
Terminal Block Component Color
White
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Tested for railway applications
