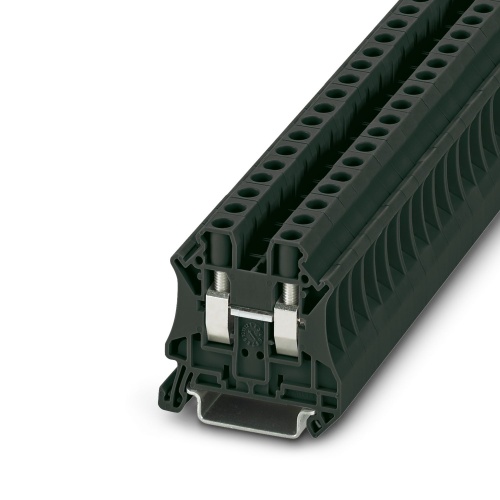

Phoenix Contact 3045208 Terminal Block 1000V 41A Square
Normally In Stock
Code: 1775
High current 41A @ 1000V feed-through terminal block with screw connection options, suitable for industrial applications
Condition: New
Usually Ships Same day or Next Day$1.98
Sale Price
$1.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Phoenix Contact 3045208 feed-through terminal block offers high current capacity up to 41A at 1000V, available in two configurations with screw connections for versatility across 0.2-10mm² cross-section sizes. It features easy mounting options and a durable black color designation
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Component Color
Black
Terminal Block Amperage
41 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Features
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
Tested for railway applications
Downloads
Phoenix 3045208 Application Note International.pdfPhoenix 3045208 CAD data International.dxfPhoenix 3045208 CAD data International.pdfPhoenix 3045208 CAD data International.stpPhoenix 3045208 CAD Drawing.zipPhoenix 3045208 Certification English-2.pdfPhoenix 3045208 Certification English.pdfPhoenix 3045208 Manufacturers declaration English.pdfPhoenix 3045208 Manufacturers declaration International-2.pdfPhoenix 3045208 Manufacturers declaration International-3.pdfPhoenix 3045208 Manufacturers declaration International.pdfPhoenix 3045208 Safety note English.pdfPhoenix 3045208 Spec Sheet.pdfPhoenix 3045208 Tender Text English.zipPhoenix 3045208 User instructions for the Ex Area International.pdfPhoenix 3045208 User Manual.pdf
