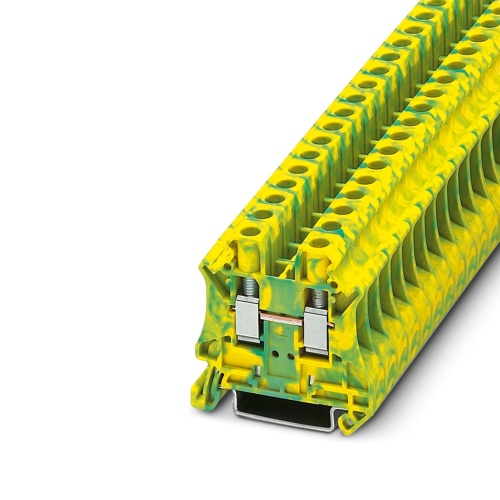

Phoenix Contact 3044157 Protective conductor terminal block UT 6-PE
Normally In Stock
Code: 1777
UT 6-PE Phoenix Contact 3044157 Phoenix Contact UT 6-PE, Ground Block 8.2mm Green-Yellow Single through screw connection, 8-24AWG
Condition: New
Usually Ships Same day or Next Day$5.45
Sale Price
$4.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044157 The protective conductor terminal block has two connections that are made using a screw connection and can accommodate copper conductors with cross-sections ranging from 0.2 mm² to 10 mm². The mounting type is specified as NS 35/7.5 or NS 35/15, and the color of the terminals is green-yellow.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Min Wire Size
24
Terminal Block Grounded
Grounded
Terminal Block Max Wire Size
8
Terminal Block Component Color
Green/Yellow
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Ground terminal block
Sub Component
Ground Modular Terminal Block
Features
Tested for railway applications
As well as saving space, the compact design enables user-friendly wiring in a small amount of space
Optimum screwdriver guidance through closed screw shafts
The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Downloads
Phoenix 3044157 Application Note International.pdfPhoenix 3044157 CAD data International.dxfPhoenix 3044157 CAD data International.pdfPhoenix 3044157 CAD data International.stpPhoenix 3044157 CAD Drawing.zipPhoenix 3044157 Certification English-2.pdfPhoenix 3044157 Certification English.pdfPhoenix 3044157 Manufacturers declaration English.pdfPhoenix 3044157 Manufacturers declaration International-2.pdfPhoenix 3044157 Manufacturers declaration International.pdfPhoenix 3044157 Safety note English.pdfPhoenix 3044157 Spec Sheet.pdfPhoenix 3044157 Tender Text English.zipPhoenix 3044157 User instructions for the Ex Area International.pdfPhoenix 3044157 User Manual.pdf
