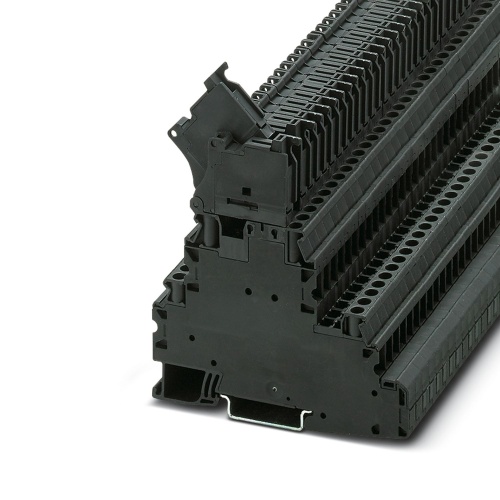

Phoenix Contact 3214325 Fuse modular terminal block UT 4-L/HESI (5X20)
Normally In Stock
Code: 18059
UT 4-L/HESI (5X20) Phoenix Contact 3214325 Phoenix Contact UT 4-L/HESI (5X20). Two Level Fuse Block 6.2mm Black with screw connection for 5mm x 20mm glass fuse insert without indicator, up to 500V, 36A, screw connection, 26-10 AWG.
Condition: New
Usually Ships Same day or Next Day$9.91
Sale Price
$8.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3214325 The fuse module terminal block has a glass/ceramic fuse with a rating of G / 5 x 20 and a nominal voltage of 250 V. It has a thermal continuous current capacity of 28 A and is connected using a screw connection method. The rated cross section of the conductor is 4 mm2, with a minimum of 0.14 mm2 and a maximum of 6 mm2. This terminal block can be mounted in two types, NS 35/7,5 and NS 35/15, and has a color designation of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Fuse Type
G - 5 x 20
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
28 Amp
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
