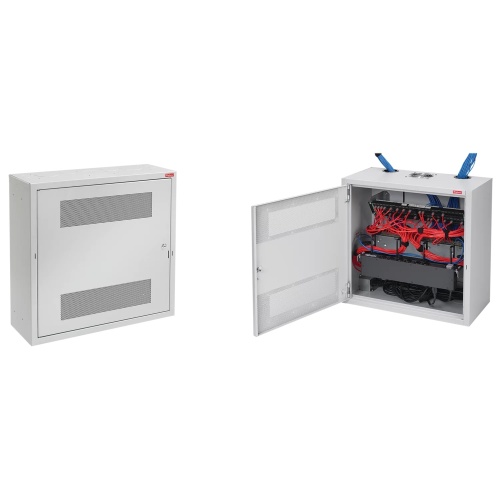

Hoffman DBS48248G 48"x24"x9.0" D-Box Network Cabinet Type 1
Normally In Stock
Code: 18234
Hoffman DBS48248G 48"x24"x9.0" Wall Mount D-Box Network Cabinet Type 1 (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$1585.12
Sale Price
$1219.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman DBS48248G 48"x24"x9.0" D-Box Network Cabinet Type 1
Specifications
Enclosure Composition
Galvanized Steel
Enclosure knockouts
Includes Knockouts
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Depth
9"
Enclosure Lock Type
Keylocking
Rack Units
4
Enclosure Height
48"
Manufacturer
Hoffman
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Component
Network Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 1
Enclosure Type
D-Box Network Cabinet
Features
120-degree door opening for maximum equipment access
Knockouts for 4-inch fan on top and bottom of enclosure
Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure, two 3-inch cable entry knockouts on back
Multiple cable tie-down points on back of enclosure
Reversible door fits flush to body with no exposed corners
Spring-loaded, self-retained hinge pins allow door removal
Quarter-turn latch with key lock
Flange around door opening protects interior
Patch panel 4U mounting angles rotate down for access
Bosses provided for mounting accessories such as cable spools
Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
Bonding provision on door
Ground stud on body
Downloads

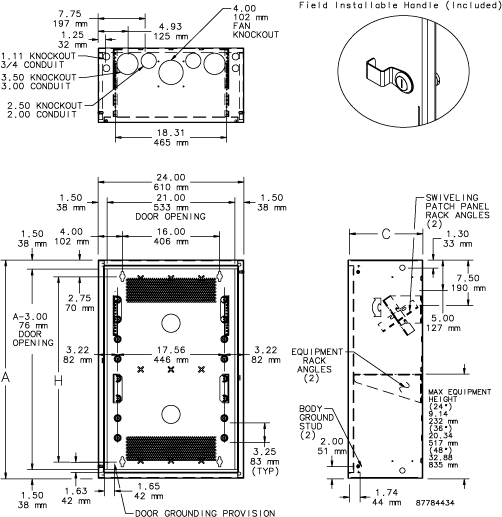

Hoffman DBS48248G 2D DXF CAD.zipHoffman DBS48248G 3D STEP CAD.zipHoffman DBS48248G CAD Drawing.zipHoffman DBS48248G Declaration of Compliance.pdfHoffman DBS48248G Dimension Drawing.gifHoffman DBS48248G EU Certification.pdfHoffman DBS48248G Instruction Manual.pdfHoffman DBS48248G Instructions.pdfHoffman DBS48248G Spec Sheet.pdf
