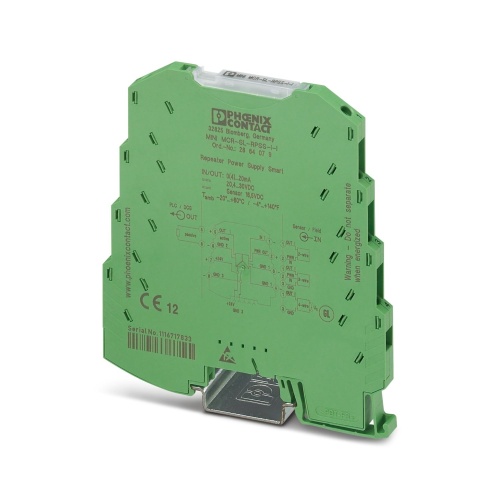

Phoenix Contact 2864079 Repeater power supply MINI MCR-SL-RPSS-I-I
Normally In Stock
Code: 19812
MINI MCR-SL-RPSS-I-I MINI MCR-SL-RPSS-I-I Phoenix Contact 2864079 Signal Conditioner Isolating Amplifier-Repeater Power Supply
Condition: New
Usually ships within 7-14 days. Call for ship time.$490.74
Sale Price
$408.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2864079 The MCR repeater power supply is equipped with HART transparency and accepts an input signal range of 4 to 20 milliamps, while also providing a corresponding output signal range of the same 4 to 20 milliamp. The device has a screw connection for attachment.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
24 VDC
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Features
Highly-compact repeater power supplies for electrical isolation, amplification, and filtering of standard analog signals
Power supply possible via the foot element (TBUS)
Can be used as an isolator with passive input

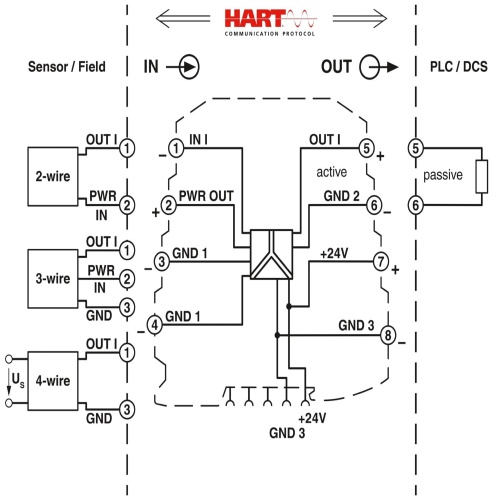

Bidirectional HART transmission as an option

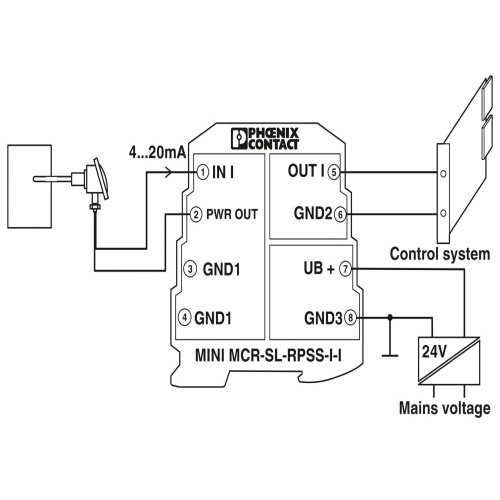

Supply of 2-conductor and passive 3-conductor sensors
3-way isolation
