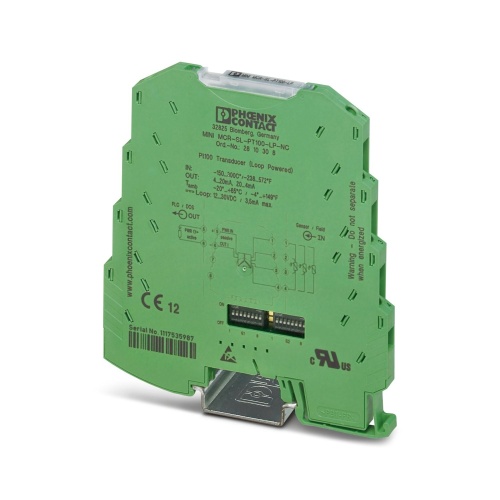

Phoenix Contact 2810308 Temperature measuring transducer MINI MCR-SL-PT100-LP-NC
Normally In Stock
Code: 19830
MINI MCR-SL-PT100-LP-NC MINI MCR-SL-PT100-LP-NC Phoenix Contact 2810308 Signal Conditioner Temperature Transducer
Condition: New
Usually ships within 7-14 days. Call for ship time.$376.39
Sale Price
$313.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2810308 A programmable, loop-powered temperature sensor is available for Pt 100 thermometers, allowing users to configure settings through DIP switches and establish a connection using screws, without any pre-set configurations.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
2 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Component
Temperature Transducer
Conditioner Output Signal Range
20 Ma - 4 Ma
Features

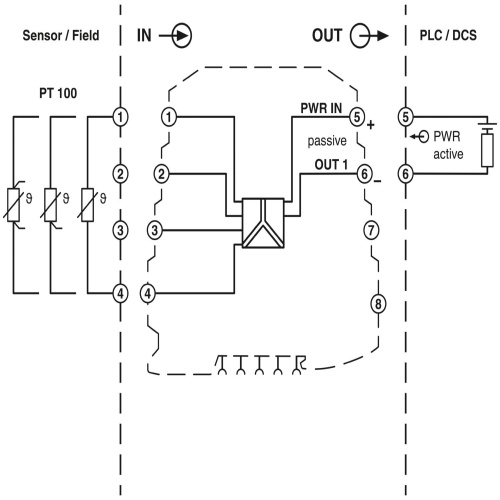

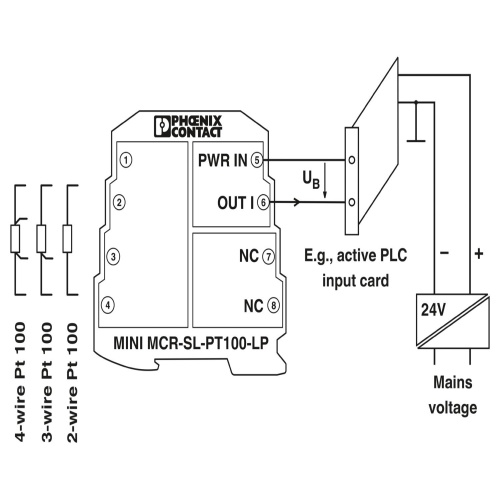

2-, 3-, 4-conductor Pt 100 sensors
Highly-compact loop-powered temperature transducer for electrical isolation, conversion, amplification, and filtering of Pt 100 signals to create standard signals
Does not require additional auxiliary voltage
Error indication via diagnostic LED and analog signal
2-way isolation
Input signals can be configured via DIP switches
Supplied by an output loop
Temperature measuring range of -150 °C ... 300 °C
Downloads
Phoenix 2810308 CAD data International.dxfPhoenix 2810308 CAD data International.pdfPhoenix 2810308 CAD data International.stpPhoenix 2810308 CAD Drawing.zipPhoenix 2810308 Data Sheet English.pdfPhoenix 2810308 Manual English.pdfPhoenix 2810308 Manufacturers declaration English.pdfPhoenix 2810308 Manufacturers declaration International-2.pdfPhoenix 2810308 Manufacturers declaration International-3.pdfPhoenix 2810308 Manufacturers declaration International.pdfPhoenix 2810308 Package Slip International.pdfPhoenix 2810308 Product Information English.pdfPhoenix 2810308 Product Sheet.pdfPhoenix 2810308 Software International.xlsPhoenix 2810308 Spec Sheet.pdfPhoenix 2810308 Tender Text English.zipPhoenix 2810308 User Manual.pdf
