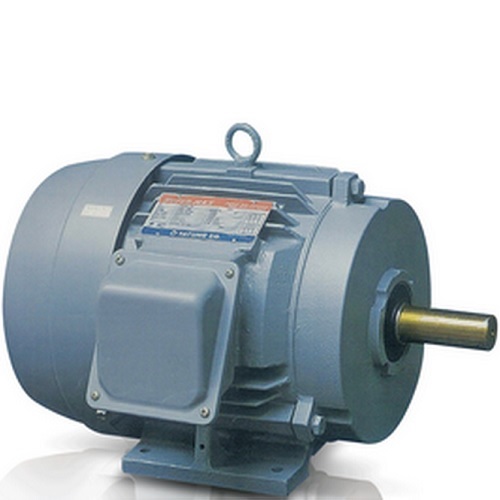

Tatung WH0106FFAC Electric Motor 10 HP 230V 3 Phase
Normally In Stock
Code: 20224
Tatung WH0106FFAC Super-Max 10 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 1200 RPM, Inverter Duty, Continuous Duty, 26.4 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 256T.
Condition: New
Usually ships Same Day or Next Day$2184.00
Sale Price
$1441.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tatung WH0106FFAC Super-Max 10 HP Electric Motor. 3 Phase 230/460 Volt, 60 Hz, Cast Iron Frame Totally Enclosed Fan Cooled, 1200 RPM, Inverter Duty, Continuous Duty, 26.4 amps(230VF/L Amps) Class F Insulation, Nema Design B. Tatung Frame 256T.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
10 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Manufacturer
Tatung Motors
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
26.4 Amp
Code: 20224
Tatung WH0106FFAC Electric Motor 10 HP 230V 3 Phase
$2184.00
Sale Price
$1441.44
