Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

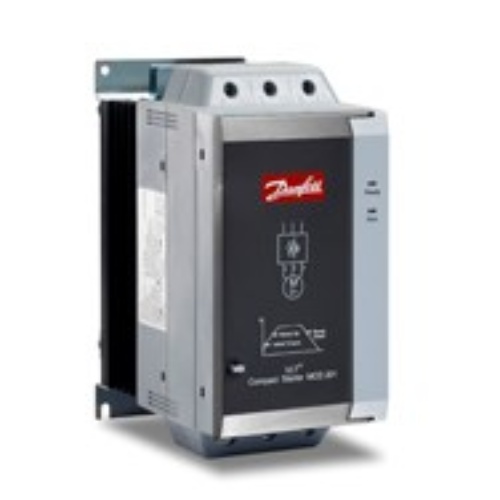

Danfoss 175G5199 Soft Starter MCD 201-015-T6-CV1
Normally In Stock
Code: 20919
Danfoss 175G5199 Soft Starter without motor protection MCD 201-015-T6-CV1, Non Reversing, 200-575 VAC Three Phase 34A, 7.5/10HP@230V, 25HP@480V, 30HP@575V, Control (Coil) Voltage 24 VDC/VAC. Current Rating for normal(6 second ramp time) is 34 amps and Heavy(20 second ramp time) use is 31 amps. IP20 protected enclosure. Length 6.49"D x 7.99"H x 3.85"W.
Condition: New
Usually ships in 7 days.$1194.00
Sale Price
$1068.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 175G5199 Soft Starter without motor protection 200-575 VAC Three Phase 34A, 7.5/10HP@230V, 25HP@480V, 30HP@575V, Coil Voltage 24 VDC/VAC. Perfect for Pumps, fans, compressors, mixers conveyors and more. Total motor starting solution. local programming keypad and display. Start, stop, and protection features. Start/stop and reset. LED for start, run and trip. Trip codes. Compatible with grounded delta power systems.
Specifications
Starter Coil Voltage (Control)
24 VAC
Starter Voltage
240 VAC
Starter VFD Input Phases
Three Phase Input
Starter Housing
Chassis (Protected IP20)
Starter Mounting
Din Rail Mount
Starter Voltage
480 VAC
Starter Voltage Range
200-575 VDC
Starter Voltage
575 VAC
Starter Reversing Capability
Non Reversing
Manufacturer
Danfoss
Starter Coil Voltage (Control)
24 VDC
Starter Horsepower
10 HP @ 240 V
Starter Horsepower
25 HP @ 480 V
Starter Horsepower
30 HP @ 575 V
Component
Soft starter
Starter Current Rating
34 Amp
Starter Current Rating
31 Amp
Features
VLT® Compact Starter MCD 201
15 kW 34A:4-6: 354
Three phase 200-575 VAC
Control voltage: 24 VAC/VDC
(A) A-Frame
VLT® Compact Starter MCD 200 from Danfoss includes two families of soft starters in the power range 7
5–110 kW
The series offers easy DIN rail mounting for sizes up to 30 kW, 2-wire or 3-wire start/stop control and excellent starting duty (4 x Ie for 6 seconds)
Heavy starting rating at 4x Ie for 20 seconds
Compatible with grounded delta power systems
