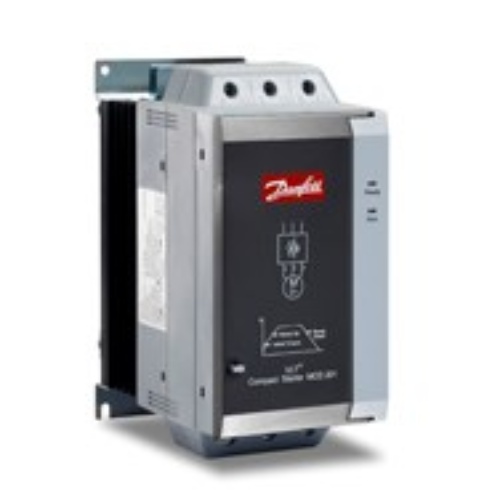

Danfoss 175G5200 Soft Starter MCD 201-018-T6-CV1
Normally In Stock
Code: 20920
Danfoss 175G5200 Soft Starter without motor protection MCD 201-018-T6-CV1, Non Reversing, 200-575 VAC Three Phase 42A, 30HP@480V, 40HP@575V, Control (Coil) Voltage 24 VDC/VAC. Current Rating for normal(6 second ramp time) is 42 amps and Heavy(20 second ramp time) use is 37 amps. IP20 protected enclosure. Length 6.49"D x 7.99"H x 3.85"W.
Condition: New
Usually ships in 7 days.$1254.00
Sale Price
$1122.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 175G5200 Soft Starter without motor protection 200-575 VAC Three Phase 42A, 30HP@480V, 40HP@575V, Coil Voltage 24 VDC/VAC. IP20 protected enclosure. Perfect for Pumps, fans, compressors, mixers conveyors and more. Total motor starting solution. local programming keypad and display. Start, stop, and protection features. Start/stop and reset. LED for start, run and trip. Trip codes. Compatible with grounded delta power systems.
Specifications
Starter Coil Voltage (Control)
24 VAC
Starter Voltage
240 VAC
Starter VFD Input Phases
Three Phase Input
Starter Housing
Chassis (Protected IP20)
Starter Mounting
Din Rail Mount
Starter Voltage
480 VAC
Starter Voltage Range
200-575 VDC
Starter Voltage
575 VAC
Starter Reversing Capability
Non Reversing
Manufacturer
Danfoss
Starter Coil Voltage (Control)
24 VDC
Starter Horsepower
30 HP @ 480 V
Starter Horsepower
40 HP @ 575 V
Component
Soft starter
Starter Current Rating
42 Amp
Starter Current Rating
37 Amp
Features
VLT® Compact Starter MCD 201
18 kW 42A:4-6: 354
Three phase 200-575 VAC
Control voltage: 24 VAC/VDC
(A) A-Frame

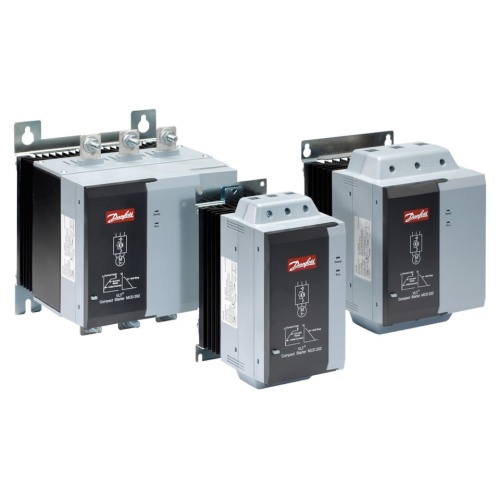

VLT® Compact Starter MCD 200 from Danfoss includes two families of soft starters in the power range 7
5–110 kW
