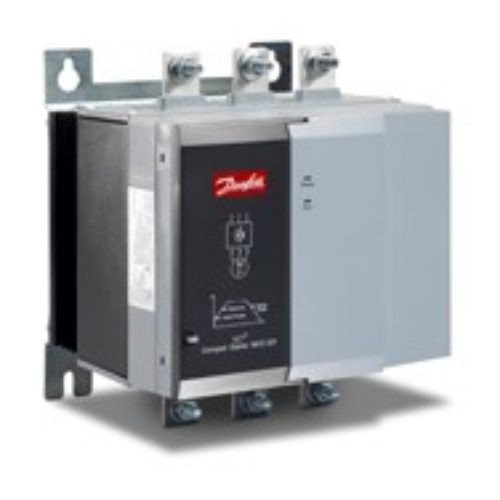

Danfoss 175G5228 Soft Starter MCD 202-075-T4-CV1
Normally In Stock
Code: 20992
Danfoss 175G5228 Soft Starter with motor protection MCD 202-075-T4-CV1, Non Reversing, 200-440 VAC Three Phase 140A, 50HP@230V, 100HP@440V, Control (Coil) Voltage 110-240 VAC. Current Rating for normal(6 second ramp time) is 140 amps and Heavy(20 second ramp time) use is 116 amps. IP20 protected enclosure. Length 8.42"D x 9.44"H x 7.95"W.
Condition: New
Usually ships in 7 days.$3170.40
Sale Price
$2836.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Danfoss 175G5228 Soft Starter with motor protection 200-440 VAC Three Phase 140A, 50HP@230V, 100HP@440V, 200HP@575V, Voltage Control (Coil) Voltage 110-240 VAC. Perfect for Pumps, fans, compressors, mixers conveyors and more. Total motor starting solution. local programming keypad and display. Start, stop, and protection features. Start/stop and reset. LED for start, run and trip. Trip codes. MCD 202 model includes Current display, motor temp display and 4-20 mA output. Compatible with grounded delta power systems.
Specifications
Starter Coil Voltage (Control)
24 VAC
Starter VFD Input Phases
Three Phase Input
Starter Housing
Chassis (Protected IP20)
Starter Mounting
Din Rail Mount
Starter Voltage Range
200-400 VDC
Starter Voltage
220 VAC
Starter Reversing Capability
Non Reversing
Manufacturer
Danfoss
Starter Coil Voltage (Control)
24 VDC
Starter Horsepower
50 HP @ 240 V
Starter Horsepower
100 HP @ 480 V
Component
Soft starter
Starter Current Rating
140 Amp
Starter Current Rating
116 Amp
Features
VLT® Compact Starter MCD 202
75 kW 140A:4-6: 594
Three phase 200-440 VAC
Control voltage: 24 VAC/VDC
(C) C-Frame
VLT® Compact Starter MCD 200 from Danfoss includes two families of soft starters in the power range 7
5–110 kW
The series offers easy DIN rail mounting for sizes up to 30 kW, 2-wire or 3-wire start/stop control and excellent starting duty (4 x Ie for 6 seconds)
Heavy starting rating at 4x Ie for 20 seconds
Compatible with grounded delta power systems
