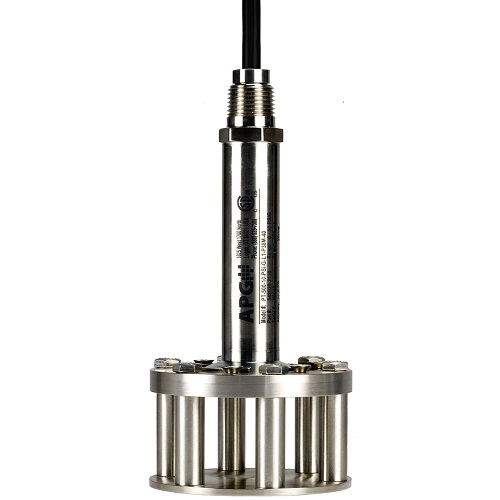

APG PT-500-C-5-PSI-G-L1-E0-P39-40-N0 Submersible Level Transmitter Dirty Liquid
Normally In Stock
Code: 21243

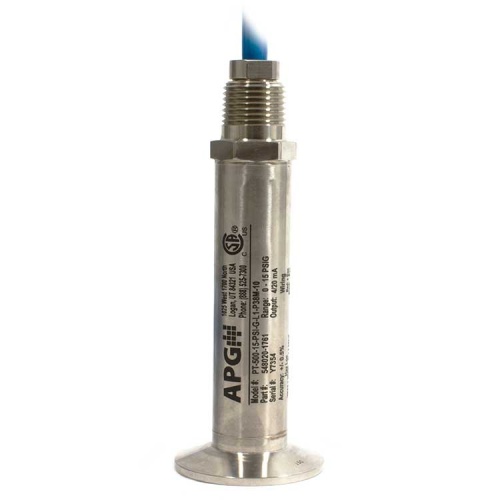

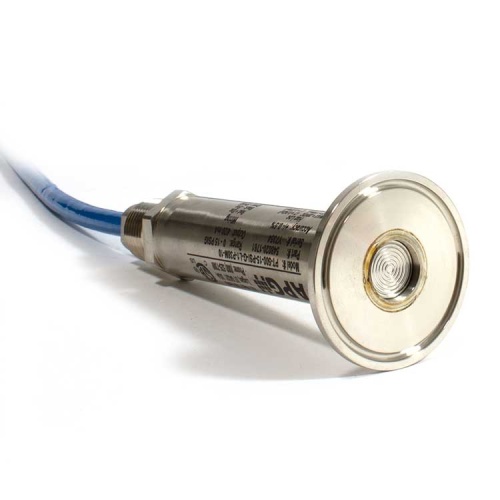

APG PT-500-C-5-PSI-G-L1-E0-P39-40-N0 Submersible Level Transmitter for dirty liquids with built in surge and lightning protection. 40' PVC cable with range of up to 450' at 0-5 PSI and an accuracy of ≤ 0.25% of span (BFSL). Output of 4-20 mA 2-wire (Loop Powered) with supply voltage of 9-28 VDC and 1/2" NPTM for conduit. Removable cage made 316 stainless steel with process connection of 1.5” tri-clover. Class 1 Div 1 Intrinsically Safe with 316 Stainless Steel housing. Temperature range of 0-130 F. Also available in 0-5,0-10,1-5 and 1-0 VDC or Modbus RTU outputs. Diameter is 3-1/2".
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1133.87
Sale Price
$944.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

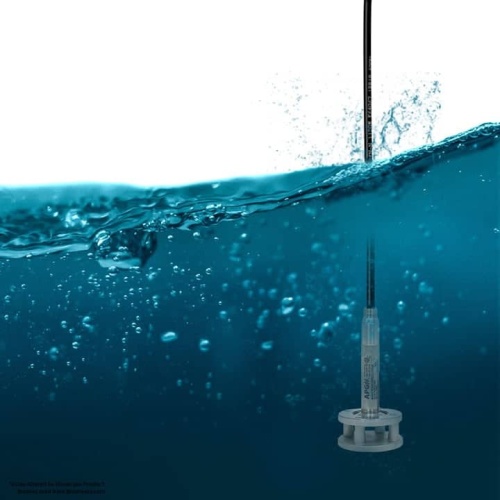

APG PT-500-C-5-PSI-G-L1-E0-P39-40-N0 Submersible Level Transmitter for clean liquids with built in surge and lightning protection. Field adjustable to zero with a simple magnet (Included). Re-Usable and removable cage for sensor. Choose from Polyurethane, PVC, and Hytrel® cables to ensure chemical compatibility. Ingenious and compact vent tube filter cap. Built to very high standards for quality and durability. The Modbus and voltage output versions use very little power and have a very fast response time - ideal for battery-powered installations. Ideal for remote level monitoring like water storage, chemical tanks, process tanks, well level monitoring. lift stations, oil storage and more.
Specifications
Component
Submersible Level Transmitter
Manufacturer
APG
(Instrument-Sensor) Type
Protective Cage
(Instrument-Sensor) Output Signal Type
4-20 Ma 2 Wire (Loop Powered)
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Application
Dirty Liquids
(Instrument-Sensor) Composition
316 Stainless Steel
(Instrument-Sensor) Span
11'
(Instrument-Sensor) Hazardous Location Class
Class 1 Div 1 Intrinsically Safe
(Instrument-Sensor) Temperature Range
0 F - 130 F
(Instrument-Sensor) Size
3.5"
(Instrument-Sensor) Connection Type
1/2" NPTM Fitting For Conduit With Pigtail
Features
Simple to install
High precision, solid state signal: 4-20 mA
Exclusive, removable and reusable cage
1/2” NPTM option on cable end for use with conduit
Durable transducer face
Intrinsically safe for Class I, Div 1/Zone 0 (4-20mA only)
Built-in lightning transient protection on every model
Single seal for highest safety protection factor
