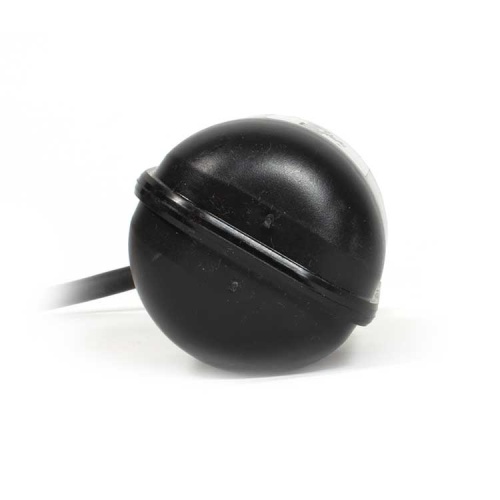

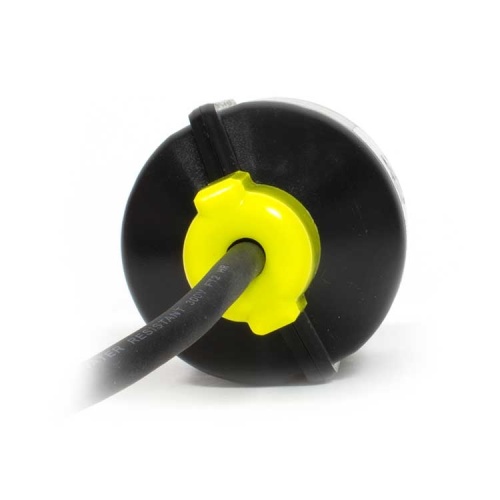

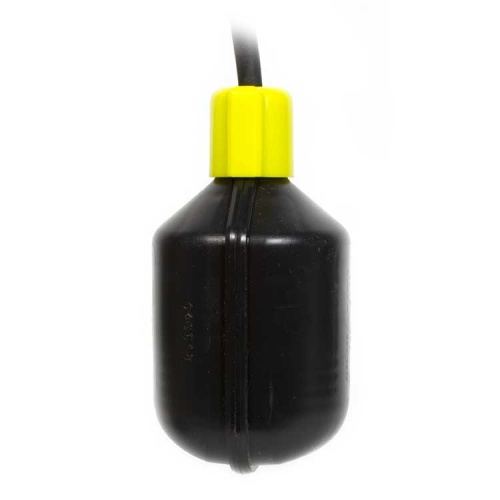

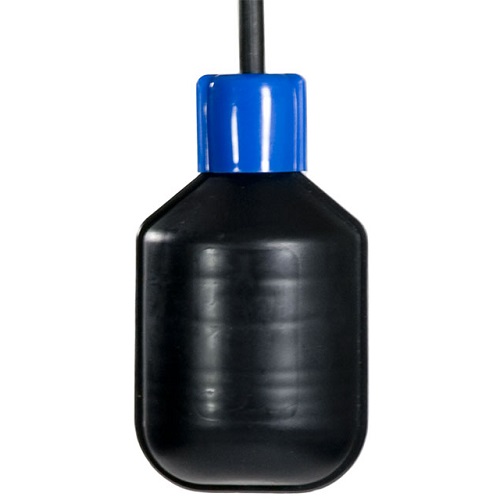

APG FT-100A Level Float Switch
Normally In Stock
Code: 21247
APG FT-100A Single Point Level Switch and Sensor that switch On or Off at one level. Single point alaming and control. Supply voltage of 125 VAC 5 Amp and 250 VAC with 20' cable. (SPST) Normally Open Switch (High Alarm) with 1.5"-4" switching differential. Polypropylene housing for general purpose. Max liquid temperature is 140 F. Max pressure 13 psi and max water depth 30' deep. Cable is 18 guage 2 conductor.
Condition: New
Usually ships Same Day or Next Day$78.17
Sale Price
$65.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
APG FT-100A Single Point Level Switch and Sensor that switch On or Off at one level. Single point alaming and control. Supply voltage of 125 VAC 5 Amp and 250 VAC with 20' cable. Normally Open Switch (High Alarm) with 1.5"-4" switching differential. Polypropylene housing for general purpose. Max liquid temperature is 140 F. Max pressure 13 psi and max water depth 30' deep. Cable is 18 guage 2 conductor.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Span
30'
(Instrument-Sensor) Type
Cable Suspended
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Span
1.5" Differential
(Instrument-Sensor) Temperature Range
140 F
Features
Highly chemical resistant
Proven reliability in operation
Not sensitive to rotation
