Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

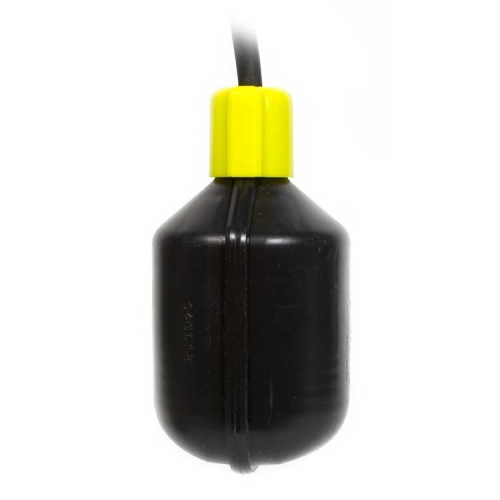

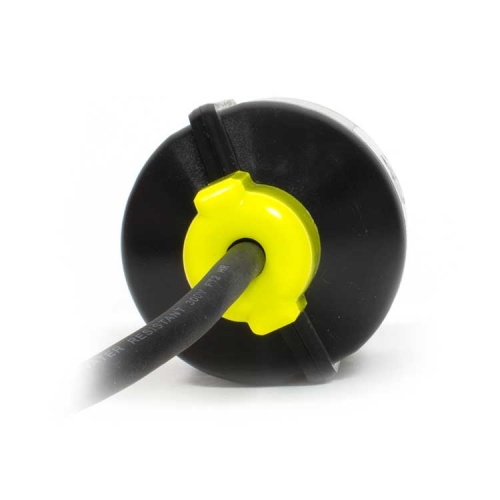

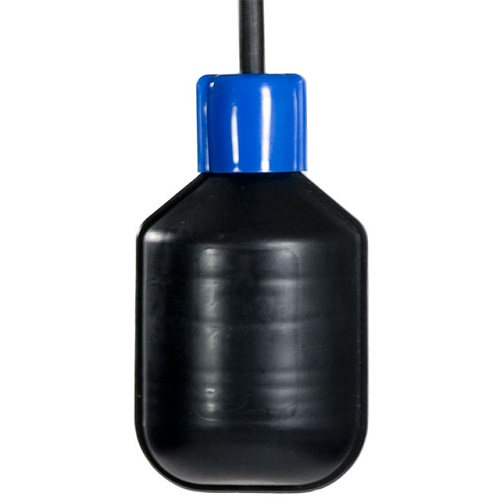

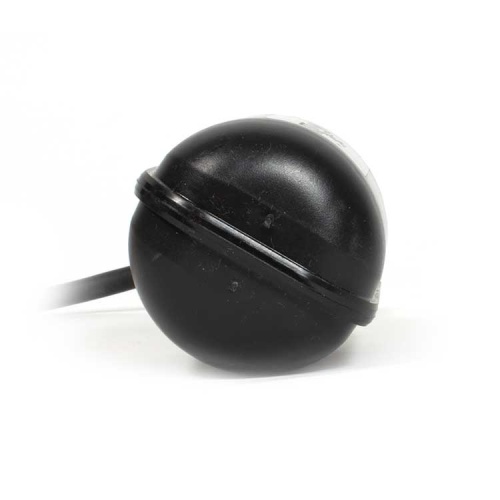

APG FT-100C Level Float Switch
Normally In Stock
Code: 21249
APG FT-100C Single Point Level Switch and Sensor that switch On or Off at one level. Single point alaming and control. Supply voltage of 125 VAC 5 Amp and 250 VAC with 20' cable. SPDT Normally Open or Normally Closed Switch ( High or Low Alarm) with 1.5" switching differential. Polypropylene housing for general purpose. Max liquid temperature is 140 F. Max pressure 13 psi and max water depth 30' deep. Cable is 18 guage 2 conductor.
Condition: New
Usually ships Same Day or Next Day$97.66
Sale Price
$81.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
APG FT-100C Single Point Level Switch and Sensor that switch On or Off at one level. Single point alaming and control. Supply voltage of 125 VAC 5 Amp and 250 VAC with 20' cable. SPDT Switch with 1.5" switching differential. Polypropylene housing for general purpose. Max liquid temperature is 140 F. Max pressure 13 psi and max water depth 30' deep. Cable is 18 guage 2 conductor.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Span
30'
(Instrument-Sensor) Type
Cable Suspended
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Indication
Low Level-Alarm
(Instrument-Sensor) Span
1.5" Differential
(Instrument-Sensor) Temperature Range
140 F
Features
Highly chemical resistant
Proven reliability in operation
Not sensitive to rotation
