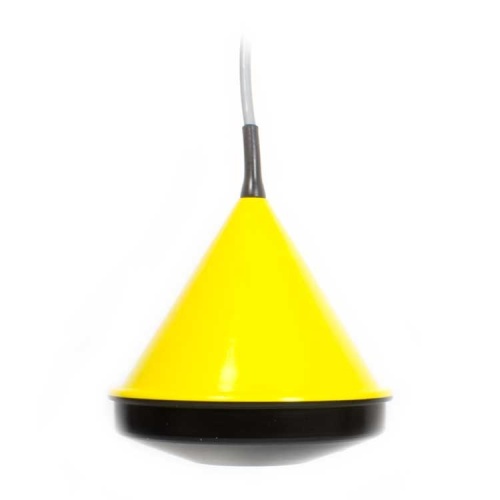

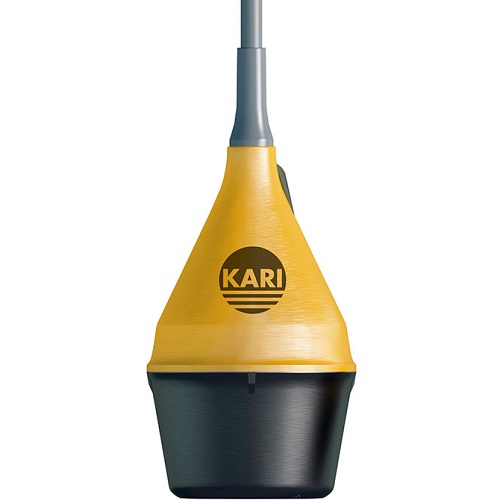

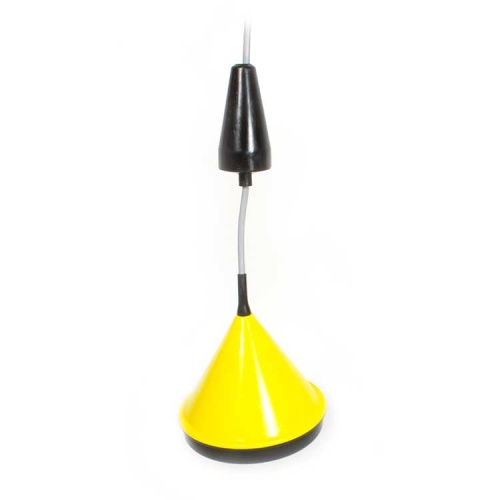

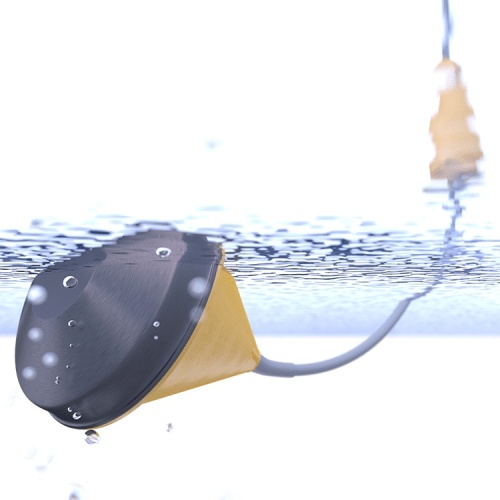

APG KA-M2L Level Float Switch
Normally In Stock
Code: 21260
APG KA-M2L Kari Fill Pump Control Float Switch (Large 6.1"H x 6.7"W) with 2 level switch 2-Normally Closed with Hysteresis. Supply voltage of 125 VAC 5 Amp and 250 VAC or 12 VDC and 24 VDC with 16' cable. Normally Open Switch with 10-50" switching differential. IP67, NEMA 6 rating with Polypropylene housing for general purpose. Max liquid temperature is 140 F. Max pressure 28 psi and max water depth 60' deep. Fluid specific gravity .7 minimum.
Condition: New
Usually ships Same Day or Next Day$183.72
Sale Price
$153.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG KA-M2L Kari Fill Pump Control Float Switch (Large 6.1"H x 6.7"W) with 2 level switch 2-Normally Closed with Hysteresis. Suspended float switch made durable with high chemical compatibility made to outlast all competitors up to 5 tomes the life in many cases. Can replace multiple floats with switch levels. Easy to adjust different activation levels. Built-in Hysteria handles logic ideal for backup pump control and eliminating controllers.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) Type
Cable Suspended
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Span
60'
(Instrument-Sensor) Span
10"-50" Differential
(Instrument-Sensor) Medium
0.7 Minimum Specific Gravity
(Instrument-Sensor) Application
Most Liquids
(Instrument-Sensor) Temperature Range
130 F
(Instrument-Sensor) For Use With
Hysteresis
(Instrument-Sensor) Indication
Hysteresis Fill Control (Pump Up)
Features
Up to 4 switching levels
Optional built-in hysteresis
25 configurations
Mercury and Lead free
High chemical compatibility
Proven reliability in operation
Cost effective
