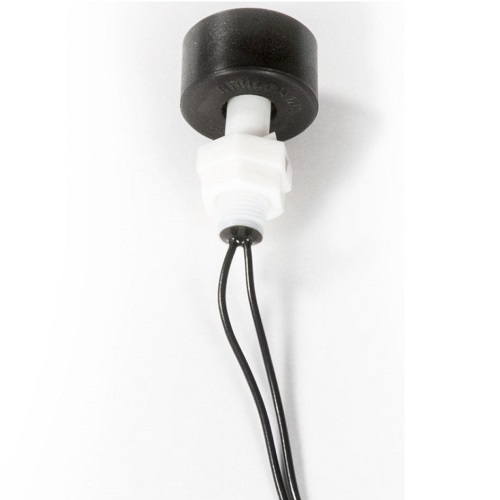

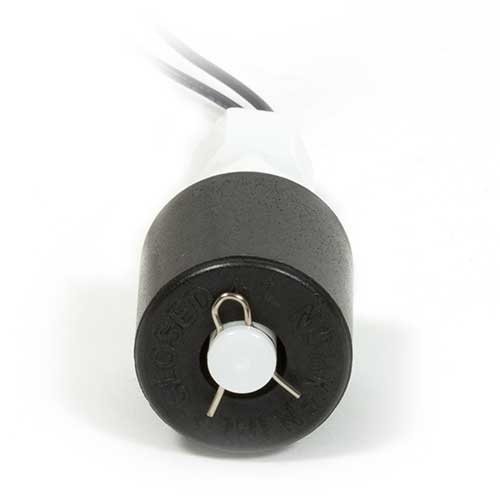

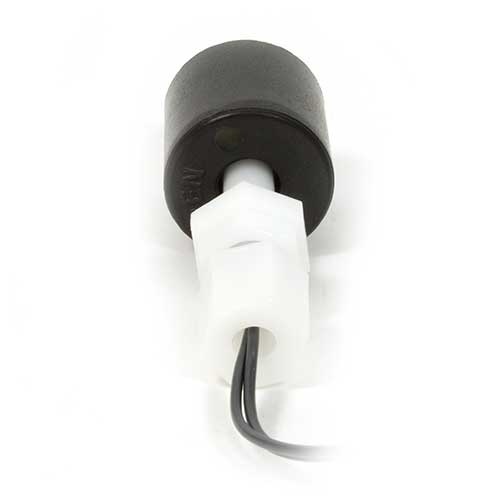

APG LFE-11R-1A Miniature Liquid Level Sensor Float Switch
Normally In Stock
Code: 21264
APG LFE-11R-1A Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Closed for Most Liquids. Supply voltage up to 300 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Closed Switch with Polypropylene Stem, Buna Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 145 psi and max water depth 334' deep. Ideal for Hydraulic and Lubricating Oil.
Condition: New
Usually ships Same Day or Next Day$25.90
Sale Price
$21.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG LFE-11R-1A Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Closed for Most Liquids. Supply voltage up to 300 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Closed Switch with Polypropylene Stem, Buna Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 145 psi and max water depth 334' deep. Ideal for Hydraulic and Lubricating Oil.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
Low Level-Alarm
(Instrument-Sensor) Type
Miniature
(Instrument-Sensor) Application
Most Liquids
(Instrument-Sensor) Span
334'
(Instrument-Sensor) Temperature Range
194 F
(Instrument-Sensor) Mounting
Vertical Mount G1-8
Features
Compact size
Low cost
Reliability/long switch life
Shock resistive construction
Can be used in a wide range of liquids
