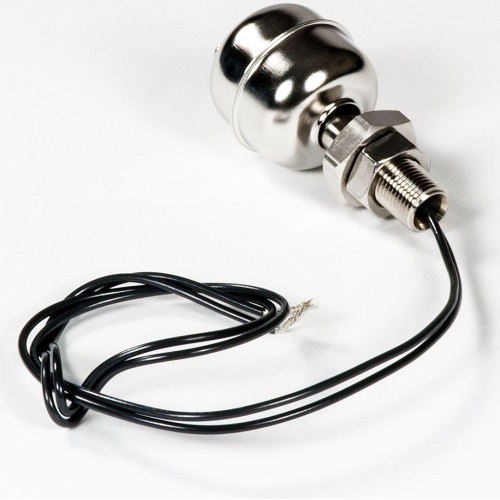

APG LFS-V-5G Miniature Liquid Level Sensor Float Switch
Normally In Stock
Code: 21272
APG LFS-V-5G Miniature Liquid Level Sensor Float Switch with 1 switch (SPDT) Normally Open or Normally Closed for Most Liquids. Supply voltage up to 300 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Open or Normally Closed Switch with 316 Stainless Steel Stem, 316 Stainless Steel Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 212 F. Max pressure 290 psi and max water depth 668' deep. Ideal for Most Liquids.
Condition: New
Usually ships Same Day or Next Day$101.60
Sale Price
$84.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG LFS-V-5G Miniature Liquid Level Sensor Float Switch with 1 switch (SPDT) Normally Open or Normally Closed for Most Liquids. Supply voltage up to 300 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Open or Normally Closed Switch with 316 Stainless Steel Stem, 316 Stainless Steel Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 212 F. Max pressure 290 psi and max water depth 668' deep. Ideal for Most Liquids.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Composition
316 Stainless Steel
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Supply Voltage
125 VAC
(Instrument-Sensor) Supply Voltage
250 VAC
(Instrument-Sensor) Indication
High Level-Alarm
(Instrument-Sensor) Indication
Low Level-Alarm
(Instrument-Sensor) Type
Miniature
(Instrument-Sensor) Application
Most Liquids
(Instrument-Sensor) Temperature Range
212 F
(Instrument-Sensor) Span
668'
(Instrument-Sensor) Mounting
Vertical Mount G1-8
Features
Compact size
Low cost
Reliability/long switch life
Shock resistive construction
Can be used in a wide range of liquids
