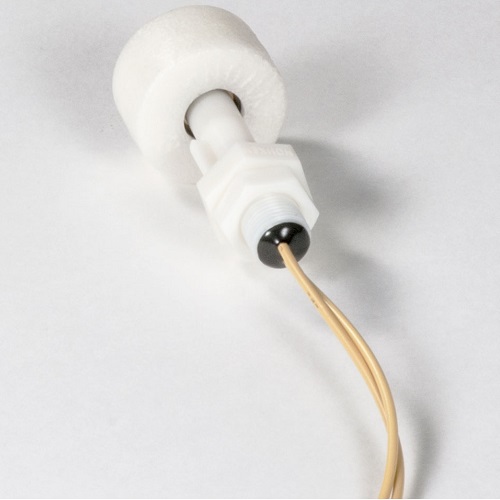

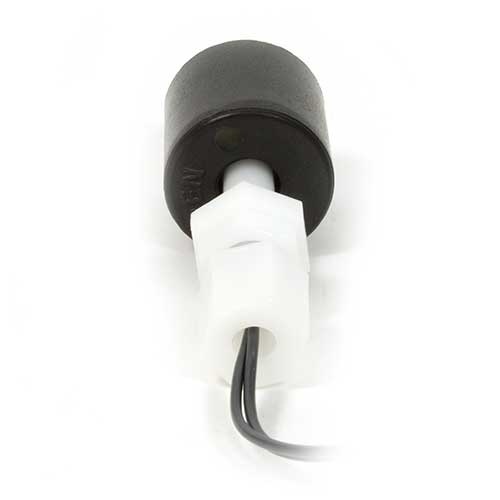

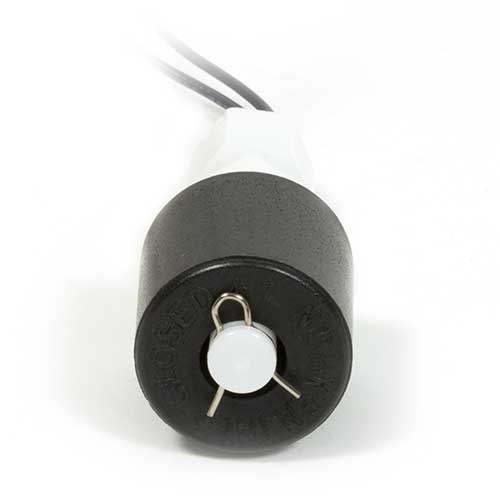

APG LFE-12P-0A Miniature Liquid Level Sensor Float Switch
Normally In Stock
Code: 21304
APG LFE-12P-0A Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Closed for Water. Supply voltage up to 100 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Closed Switch with Polypropylene Stem, Polypropylene Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
Condition: New
Usually ships Same Day or Next Day$47.84
Sale Price
$39.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
APG LFE-12P-0A Miniature Liquid Level Sensor Float Switch with 1 switch (SPST) Normally Closed for Water. Supply voltage up to 100 VAC with 22 AWG wire 11.8" long. Vertical Mount G1/8 thread. Normally Closed Switch with Polypropylene Stem, Polypropylene Float, and 316 Stainless Steel Retainer for general purpose use. Max liquid temperature is 194 F. Max pressure 7 psi and max water depth 16' deep. Ideal for Water.
Specifications
Component
Level Float Switch
Manufacturer
APG
(Instrument-Sensor) Span
16'
(Instrument-Sensor) Application
Water
(Instrument-Sensor) Indication
Low Level-Alarm
(Instrument-Sensor) Type
Miniature
(Instrument-Sensor) Temperature Range
194 F
(Instrument-Sensor) Supply Voltage
Up to 100 VAC
(Instrument-Sensor) Mounting
Vertical Mount G1-8
Features
Compact size
Low cost
Reliability/long switch life
Shock resistive construction
Can be used in a wide range of liquids
