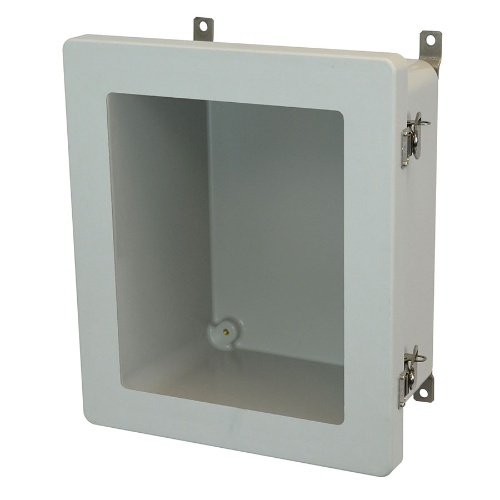

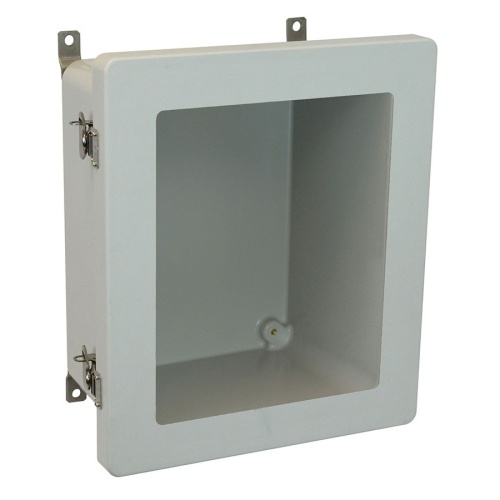

Allied Moulded AM1648TW ULTRAGUARD Fiberglass reinforced polyester Type 4x Small Window Junction Box
Normally In Stock
Code: 22294
Allied Moulded AM1648TW ULTRAGUARD Fiberglass reinforced polyester Type 4x Window Junction Box Enclosure 16" x 14" x 8" (HXWXD) Inside Dimension. Bonded clear polycarbonate cover hinged with lockable twist latch. 316 Stainless Steel hinge, latch, external hardware and plated carbon steel internal hardware.
Condition: New
Ships in 2 weeksMust order a minimum of $150 of Allied Moulded products for order to ship.
$322.89
Sale Price
$283.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Allied Moulded AM1648TW ULTRAGUARD Fiberglass reinforced polyester Type 4x Small Window Junction Box hinged with lockable twist latch, non-corrosive and non-conductive is lightweight and easy to modify. Ideal to protect electronic and electrical components, controls and instruments in outdoor and indoor applications. Rigid design compression molded SMC box and Cover ideal for extreme temperature and corrosive environments.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Door Type
Window
Enclosure Composition
Polyester
Enclosure Latch Type
Twist
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Allied Moulded
Line
ULTRAGUARD
Enclosure Mount Type
Wall Mount
Enclosure Height
16"
Enclosure Width
14"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Features
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
