Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

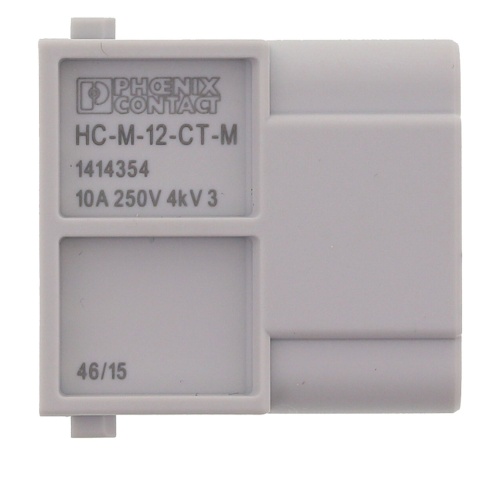

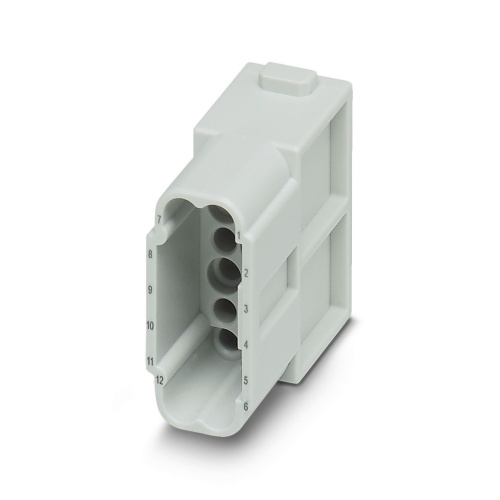

Phoenix Contact 1414354 Contact insert module HC-M-12-CT-M
Normally In Stock
Code: 237703
Phoenix Contact 1414354 - Contact insert module - 12 Positions - Copper Alloy - 26 AWG - Light Grey - 10 Amp - 250 V
Condition: New
Usually ships Same Day or Next Day $2.81
Sale Price
$2.34
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

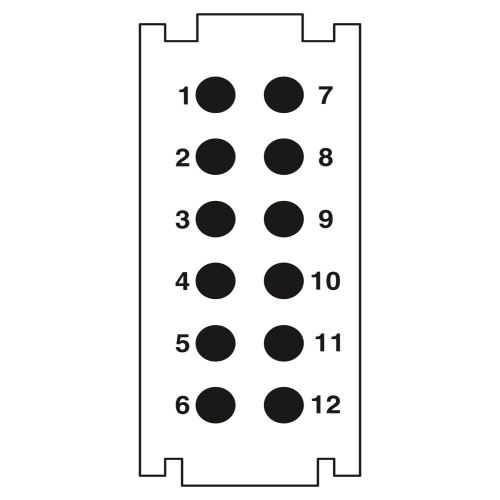

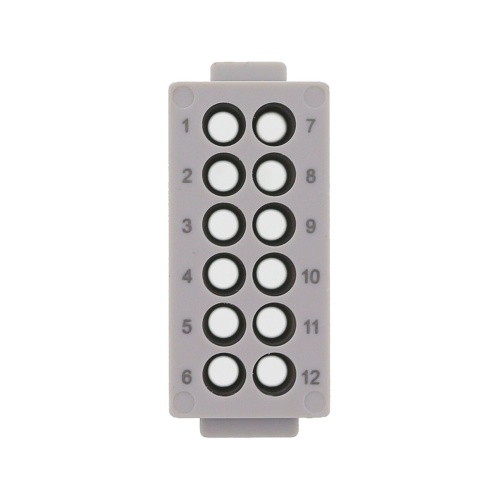

Phoenix Contact 1414354 The insert module has a total of 12 contact positions, including power and control contacts, which are connected using pin and crimp connections, rated for a current capacity of 10 Amps and having cross-sectional areas of 0.14 mm² to 2.5 mm², with the primary application being signal transmission.
Specifications
Connector Amperage
10 Amp
Connector Material
PC
Connector Material
Copper alloy
Component
Connector
Manufacturer
Phoenix Contact
Connector Color
Light grey
Number of Positions
12
Sub Component
Contact Insert Module
Connector Voltage
250 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
