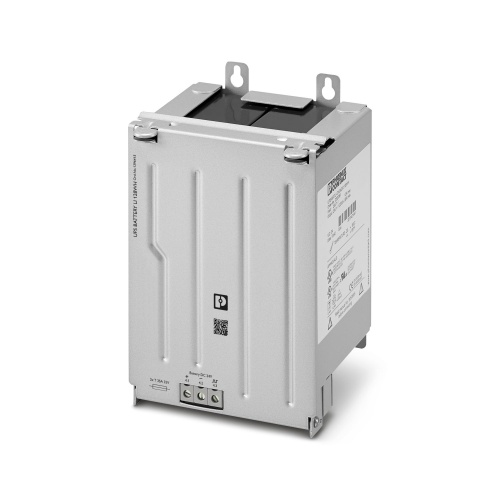

Phoenix Contact 1396415 Battery module UPS-BAT/LI/24DC/128WH
Normally In Stock
Code: 260166
UPS-BAT/LI/24DC/128WH Phoenix 1396415 Energy storage Input: 24 VDC,10 Amp *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$1049.92
Sale Price
$874.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1396415 A battery module suitable for use with a QUINT UPS can be powered by a Lithium-Ion battery (LiFePO4) with a capacity of 128 Wh and a nominal voltage of 24 V DC. The recommended ambient temperature range for charging is between 0°C and 60°C, with a maximum allowed charging current of 5 A.
Specifications
Component
Battery
Manufacturer
Phoenix Contact
Power Supply Amperage Output
45 Amp
Power Supply Voltage Input Range
24 VDC
Power Supply Amperage Output Range
6-10 Amp
Features
Quick installation with automatic detection of the battery modules and tool-free replacement during operation
Maximum availability due to constant communication with the QUINT UPS for continuous monitoring and intelligent management
Extremely long service life with optimum charging characteristics based on the technology and ambient conditions
Immediate availability, as all battery modules leave our warehouse optimally charged
