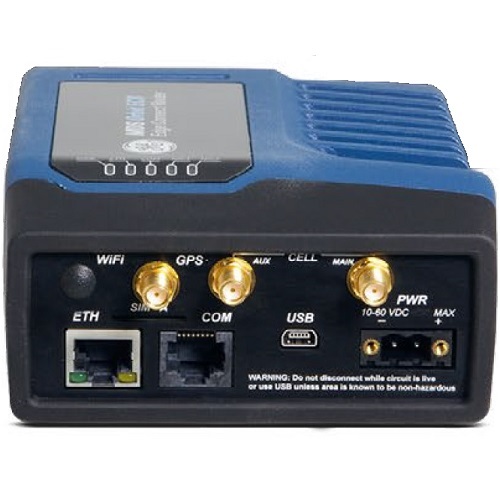

MDS Orbit ECR Cellular 3G GSM World Dual SIM-No Second Media 1 Ethernet 1 Serial 1 USB (Standard Mount)
Normally In Stock
Code: 26223
MDS ECR3G12NNNNS1S3USUNNN Orbit Cellular 3G GSM World Dual SIM with stadard mount (No Second Media) Managed Connected Router ECR Series. 902-928 MHz Radio with 1 Ethernet Port and 1 Serial and 1 USB Port. Up to 30 mile range.
Condition: New
Usually ships Same Day or Next Day$1330.75
Sale Price
$1209.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
MDS Orbit ECR Cellular 3G GSM World Dual SIM with standarad mount and No Second Media. ECR3G12NNNNS1S3USUNNN Managed Connected Router MCR Series. Includes 2 Ethernet and 1 Serial port. Operating power of 10-60 VDC up to 1 watt. USB for configuration, status monitoring, local and secure single point connection. Range of up to 30 miles line of site. Low latency and scalable data throughput rates of 125 Kbps, 250 Kbps, 500 Kbps, 1 Mbps, and 1.25 Mbps. Access Point, remote, store and forward, point to multipoint and point to point. Works as Serial Terminal Server with protocols including Modbus and DNPv3 supported and serial traffic from SCADA and telemetry data encapsulated in TCP and UDP to transport across MDS Orbit wireless or wired networks. The MDS Orbit devices are capable of routing across any of its network interfaces including the local Ethernet ports, WiFi, WiMAX, cellular, and 900MHz ISM. Operating temperature of -40F-158F. (2.1"H x 4.3"W x 4.6"D) Antenna ports for 900 MHz: TNC, WiFi: RP-SMA, Cellular SMA. Ethernet ports: RJ-45, Serial ports: RS-232/RS-485 and RJ45.
Specifications
Radio Type
Cellular
Radio 2 Type
None
Radio Capability
Point to Multipoint
Radio Voltage
12 VDC
Radio Voltage
24 VDC
Radio Carrier Power
1 watt
Radio Data Protocol
Serial
Radio Temperature Range Low
-40f
Radio Temperature Range High
158f
Radio Encryption
AES-128
Radio Housing
Enclosed
Radio UL Approval
UL Approved
Radio Data Protocol
Ethernet
Radio Range
Unlimited
Radio Voltage
48 VDC
Radio Serial Ports
1 Serial Port
Radio RF Connector
TNC Female
Radio Ethernet Ports
1 Ethernet Port
Radio Data Interface
RJ45
Radio Mounting
Standard Mount
Radio Data Rate
1.25 Mbps
Radio Frequency Range
Cellular
Radio Antenna Ports
1 Antenna Port
Manufacturer
MDS
Line
Orbit ECR
Component
Radio
