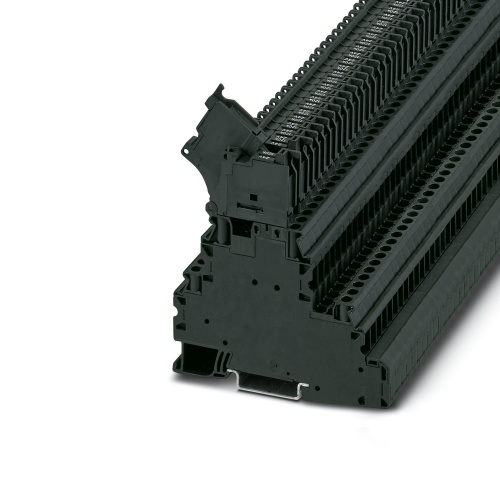

Phoenix Contact 3214366 Fuse modular terminal block UT 4-L/HESILED 24 (5X20) 120KOHM
Normally In Stock
Code: 27424
UT 4-L/HESILED 24 (5X20) 120KOHM Phoenix Contact 3214366 Phoenix Contact UT 4-L/HESILED 24 (5X20). Two Level Fuse Block 6.2mm Black with screw connection for 5mm x 20mm glass fuse insert with LED indicator 24 volt, up to 500V, 30A, screw connection, 26-10 AWG.
Condition: New
Usually ships within 7-14 days. Call for ship time.$15.43
Sale Price
$12.86
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

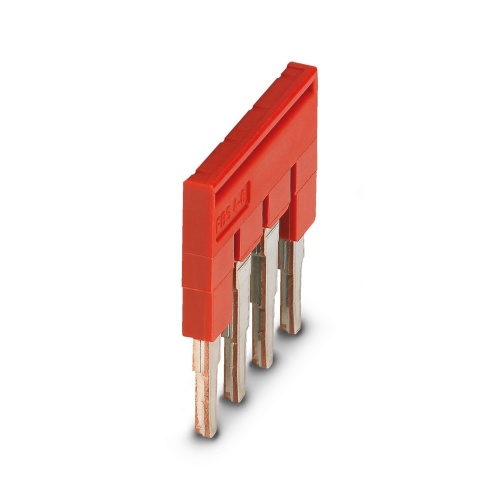

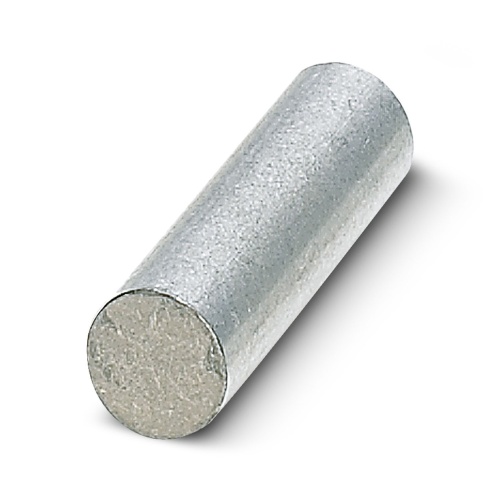

Related Products
Description
Phoenix Contact 3214366 A fuse terminal block with a glass/ceramic fuse has a nominal voltage of 24V and can handle up to 28A of continuous thermal current. The rating allows for screw connections with cross sections ranging from 0.14mm2 to 6mm2, utilizing the NS35/7.5 and NS35/15 mounting types, all of which have a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Disconnect
Knife Disconnect
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block With Test Disconnects
With Test Socket Screws
Terminal Block Component Color
Black
Terminal Block Amperage
30 Amp
Terminal Block Fuse Type
G - 5 x 20
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features
Comprehensive product range for cartridge fuse-links, automotive flange fuses, and thermal device circuit breaker plugs
Easy potential distribution thanks to continuous function shafts
Convenient testing of fuses with test points on both sides
Quick identification of faulty fuses and fuse holders regardless of the current direction thanks to an LED status indicator
Easily accessible fuse-links are easy to replace
Same shape as the feed-through, knife, and disconnect terminal blocks
Downloads
Phoenix 3214366 CAD data International.dxfPhoenix 3214366 CAD data International.pdfPhoenix 3214366 CAD data International.stpPhoenix 3214366 Certification English.pdfPhoenix 3214366 Certification International.pdfPhoenix 3214366 Manufacturers declaration English.pdfPhoenix 3214366 Manufacturers declaration International.pdfPhoenix 3214366 Safety note English.pdfPhoenix 3214366 Tender Text English.zipPhoenix 3214366 User instructions for the Ex Area International.pdf
