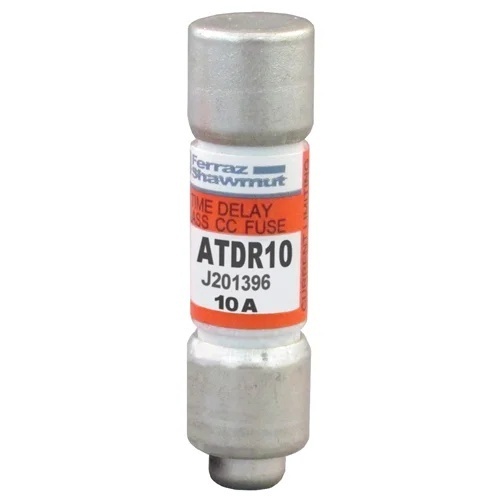

Mersen ATDR10 Fuse Class CC 10 Amp
Normally In Stock
Code: 29176
Mersen ATDR10, 10 Amp, 600 Volts, Class CC
Condition: New
Usually Ships Same Day or Next Day.$39.58
Sale Price
$32.98
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen ATDR10, 10 Amp, 600 Volts, UL Class CC, Time Delay, Highly Current Limiting, Physical Size: 41/100" x 1 1/2", High Inrush Current Protection, Small Motors and Contactor Protection, AC Voltage Rating: 600, DC Voltage Rating: 300, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 100,000 AIC, UL Listed, CSA Certified,
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class CC
Fuse Response Time
Time Delayed
Fuse Protection Type
High Inrush Current Protection
Fuse Protection Type
Small Motors
Fuse Protection Type
Contactor Protection
Manufacturer
Mersen
Fuse Size
0.41" x 1.5"
Fuse Amperage Rating
10 Amp
Component
Fuse
(CL)
MUST BUY IN PACKS OF 10
Features
Time-delay for motor starting inrush currents without nuisance opening
Highly current-limiting for low peak let-thru current
Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High-visibility orange label ensures instant brand recognition, simplifies replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching and optimum current-limitation
