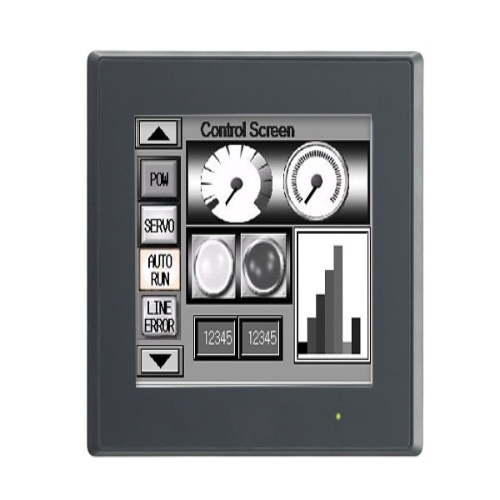

IDEC HG2G-5TN22TF-B 6" Monochrome HMI Screen
Normally In Stock
Code: 294540
IDEC HG2G-5TN22TF-B - 6" Touchscreen - 5 MB - 24 VDC - Monochrome - Black bezel - 5.3" x 6.58" x 1.61" (HxWxD)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM IDEC FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$1037.58
Sale Price
$864.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
IDEC HG2G-5TN22TF-B - Introducing the black 5.7-inch TFT LCD mono display with a resolution of 320 x 240 pixels, capable of displaying 16 shades with a high brightness of 1100 cd/m². It operates on a power voltage range of 12-24V DC and is designed to withstand extreme temperatures from -20°C to +60°C. The backlight has an impressive lifespan of 100,000 hours. It supports various communication protocols such as FTP, Email, and Web Server, allowing for versatile connectivity options. Additionally, it supports up to 4 protocols simultaneously and can be accessed and controlled through the WindEDIT mobile app on iOS and Android devices. The device is rated IP 66F, Type 4X, and Class I Div 2, ensuring its durability and suitability for challenging environments.
Specifications
HMI & PC Supply Voltage DC
24 VDC
HMI & PC NEMA Rating
NEMA 4X
HMI & PC Connection Type
1 USB 2.0 type A
HMI & PC Screen Display Resolution
320 x 240
HMI & PC Connection Type
RJ45
Component
HMI Screen
HMI & PC Operation
Touchscreen
HMI & PC Screen Display Size
6"
Manufacturer
IDEC
HMI & PC Connection Type
1 USB 2.0 Mini B
HMI & PC NEMA Rating
NEMA 13
HMI & PC Degree of Protection
IP66F
HMI & PC Width
6.58
HMI & PC Memory (Mass Storage)
5 MB
HMI & PC Max Power Consumption
8 Watts
HMI & PC Height
5.30
HMI & PC Depth
1.61
HMI & PC Display Color
Monochrome
Features
5.7in TFT LCD Mono Displays
16 shades with 1100 cd/m² (Monochrome)
Rated Power Voltage: 12-24V DC
Display Resolution: 320 x 240 Pixels
Extreme Operating Temp: -20Â ÌŠ C to +60Â ÌŠ C
Backlight Lifespan: 100,000 hours
Supports FTP, Email, Web Server
Supports up to 4 protocols simultaneously
WindEDIT Mobile App for iOS and Android devices
IP 66F, Type 4X, Class I Div 2
3-year warranty
Downloads
External Device Setup Manual (for SmartAXIS Touch, MICRO-I).pdfHG-G USB Driver.zipHG2G Instruction Sheet(HG2G-5T).pdfHG2G Instruction Sheet(HG2G-S).pdfHG2G Mounting Adapters Instruction Sheet.pdfHG9Z USB Panel-Mount Extension Cable Instruction Sheet.pdfHG9Z-2G1 Operator Interface O-I Link Unit Instruction Sheet.pdfHG9Z-XC275 Option Cable Instruction Sheet.pdfProtective cover for HG Instruction Sheet.pdfProtective cover for HG2G Instruction Sheet.pdfUser Manual- Data File Manager.pdfWind O-I NV4 User's Manual.pdfWindO-I-NV2 User Manual.pdf
