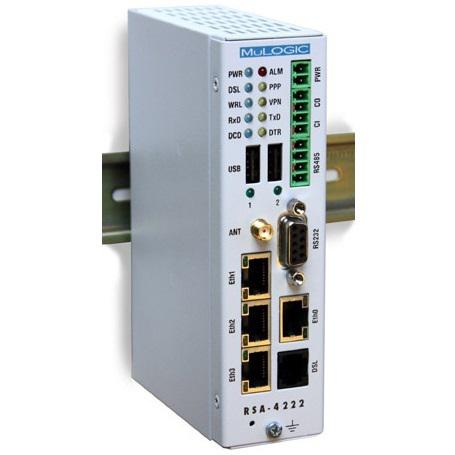

Mulogic RSA-4222W/Vr2 Industrial ADSL/VDSL2 Router & 3G Wireless 24-48V
Normally In Stock
Code: 30102
Mulogic RSA-4222W/Vr2 Industrial ADSL/VDSL2 Router & 3G Wireless 24-48V with a ruggedized metal case, din rail mount. Includes 1 Wireless WAN port with support for 2G and 3G mobile networks worldwide, 2 serial ports, 4 Ethernet Ports, and 2 USB2.0 Ports. This device allows you to maintain connectivity with a serial RS232 or RS485 port while having an Ethernet interface to other devices such as remote surveillance cameras. Serial ports support SCADA protocols like Modbus RTU/ASCII, DNP3 and IEC60870-5-101. Can be installed without the need for replacing the telephone line. Just add ADSL service to the existing telephone line.
Condition: New
Usually ships within 2 days$1585.49
Sale Price
$1387.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mulogic RSA-4222W/Vr2 Industrial Remote Site Access ADSL/VDSL2 Router & Wireless 24-48V with Wireless WWAN interface for 2G and 3G GSM and LTE mobile networks worldwide. For access to remote locations such as water and power substations or traffic management systems and various other remote sites with automation equipment. Extended temperature range suitable for operating at ambient temperatures ranging from -40°F to +158°F. Wireless WAN interface iwth 2G/3G version: 5-Band UMTS, 4-Band GSM. 2G/3G/4G version: 5-band LTE, 3-band UMTS, Dual band GSM. Two serial port gateways for remote serial data (TCP/IP or UDP/IP) to serial ports (one RS232, one RS485) with data rates from 300bits to 115.2 kbps. Ethernet ports support SCADA protocols like Modbus/TCP, DNP3/IP and IEC60870-5-104 are 10/100baseT, Auto-MDI/MDIX. All can be used as LAN or WAN port. Access router with multiple WAN ports: ADSL, Ethernet and Wireless WAN (external USB modems). Two USB2.0 ports are available for connecting an external wireless WAN modem and USB devices like memory and interface devices for extra Ethernet and serial ports.
Specifications
(Modem/Router) Data Type
Ethernet
(Modem/Router) Mounting
Din Rail
(Modem/Router) High Temperature Range
158 F
(Modem/Router) Data Type
Serial
(Modem/Router) Low Temperature Range
-40 F
(Modem/Router) Serial Ports
2 Serial Ports
(Modem/Router) Type
Cellular Router
(Modem/Router) Communication Medium
DSL Line (ADSL)
(Modem/Router) Communication Medium
Wireless Cellular
(Modem/Router) Case Type
Steel
(Modem/Router) Data Rate Serial
115.2 kbps
(Modem/Router) Downstream Rate
24 Mbps
(Modem/Router) Ethernet Ports
4 Ethernet Ports
(Modem/Router) USB Ports
2 USB 2.0 Ports
(Modem/Router) Wireless Interface
Includes Wireless Interface
(Modem/Router) Cellular Network Interface
2G Cellular Interface
(Modem/Router) Cellular Network Interface
3G Cellular Interface
(Modem/Router) Type
VDSL2 Modem
(Modem/Router) Communication Medium
DSL Line (VDSL2)
(Modem/Router) Voltage Rating
24 Volt
Manufacturer
Mulogic
(Modem/Router) Voltage Rating
48 Volt
Component
ADSL Modem/Cellular Router
