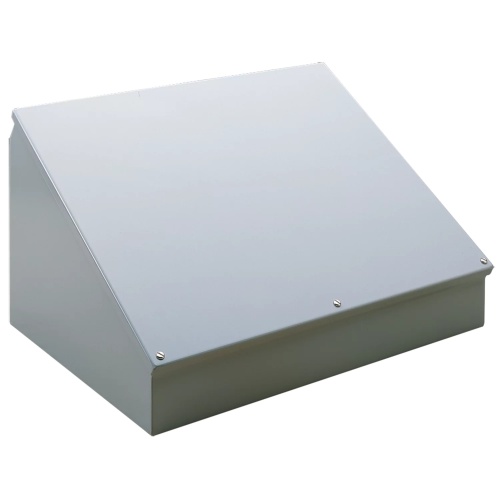

Hoffman C20C20 Consolet Steel Enclosure
Normally In Stock
Code: 3126
Hoffman C20C20 Junction Box Cosolet 20 x 20 x 13.09 inch (HxWxD) Steel Type 12 Indoor Console Enclosure with hinged slope top and captivated screws for sealing cover on to console. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$681.52
Sale Price
$567.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Hoffman C20C20 Consolet Steel Enclosure Steel Consolet for mounting control equipment or instrumentation with desirable access with sloped top. Mounted on desktops, pedestals or any flat surface. Opens from the top with hinged cover and captivated screws thread into sealed wells. Gray powder coat paint finish.
Specifications
Enclosure Interior Color
White
Enclosure Hinge Type
Continuous Hinge
Enclosure Latch Type
Screw Lift-Off
Enclosure Depth
13"
Enclosure Mount Type
Pedestal Mount
Enclosure Composition
Painted Steel
Enclosure Height
20"
Enclosure Width
20"
Manufacturer
Hoffman
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Features
Bonding provision on cover
No holes or knockouts
Captivated cover screws thread into sealed wells
Oil-resistant gasket and adhesive
Seams continuously welded and ground smooth
Can be positioned on either of two sides to provide a 30- or 60-degree surface access
Continuous hinge
Downloads
Hoffman C20C20 2D DXF CAD.zipHoffman C20C20 3D STEP CAD.zipHoffman C20C20 CAD Drawing.zipHoffman C20C20 Declaration of Compliance.pdfHoffman C20C20 Dimension Drawing.gifHoffman C20C20 EU Certification.pdfHoffman C20C20 Instruction Manual.pdfHoffman C20C20 Repainting Instructions.pdfHoffman C20C20 Spec Sheet.pdfHoffman C20C20 UL Certification.pdfHoffman C20C20 User Manual.pdf
