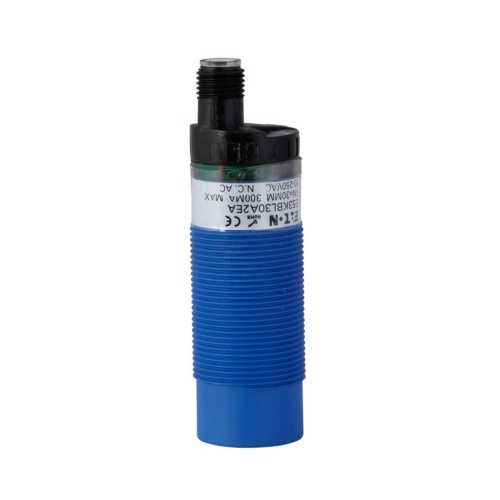

Eaton E53KBL30A2EA Capacitive Proximity Sensor
Normally In Stock
Code: 357371
Eaton E53KBL30A2EA - E53 Series, 0 - 35 mm Sensing Range - 1 NC - 300 mA Solid State Output - Body: polyoxymethylene (POM),Mounting Nuts: nylon 66 (PA66) - Output status
Condition: New
Usually ships Same Day or Next Day$511.87
Sale Price
$426.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E53KBL30A2EA - E53 Series Tubular Capacitive Proximity Sensor, 1.18 dia, dist 35 mm, 300 mA max AC, 2-Wire AC, NC, 300 mA SS Output, 4 Pin Dual Key Micro Connector, 20–250 Vac input, <5% accuracy, None, Un-shielded
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Size
M30
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
Component
Capacitive Proximity Sensor
Line
E53
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Contact Rating
300 mA Solid State Output
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Span
0 - 35 mm
(Instrument-Sensor) Connection Type
4 Pin Dual Key Micro Connector
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Supply Voltage
20-250 VAC
Features
Detect liquids, powders and other materials that are difficult or impossible with other sensor types
Plastic body is corrosion resistant

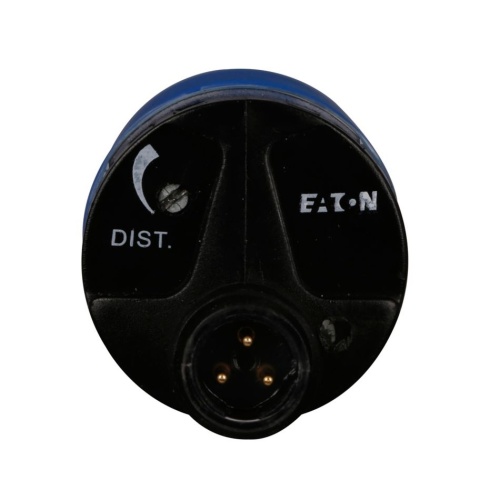

Sensitivity adjustment
Output indicator LED
