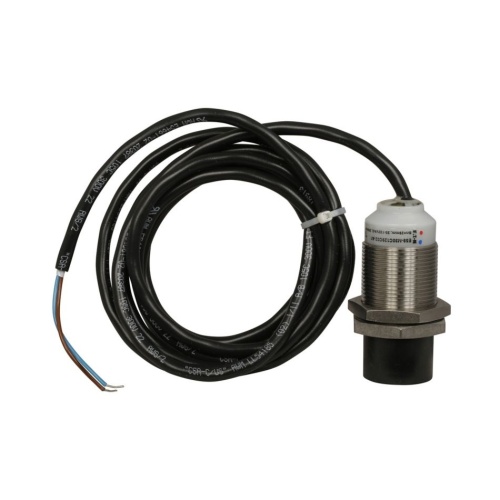

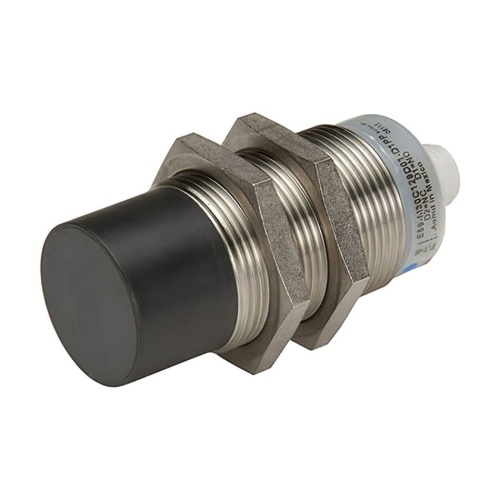

Eaton E59-M30C129C02-D1 Inductive Proximity Sensor
Normally In Stock
Code: 358398
Eaton E59-M30C129C02-D1 - E59 Series - 1 NO - 300 mA at 48 VDC - 303 stainless steel - 360 ° viewable LED
Condition: New
Usually ships Same Day or Next Day$267.71
Sale Price
$223.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E59-M30C129C02-D1 - E59, Straight, 30 mm, Unshielded, 360° viewable LED, 6.6 ft, 300 mA at 6-48 Vdc, <3% sensing range, PVC, NPN/PNP auto configure, NO, 6-48 Vdc
Specifications
Component
Inductive proximity sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M30
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Cable Length
6.6 ft
(Instrument-Sensor) Temperature Range
-40 °F - 158 °F
(Instrument-Sensor) Supply Voltage
6-48 VDC
Line
E59
(Instrument-Sensor) Contact Rating
300 mA at 48 VDC
Features
Available in AC two-wire, DC three-wire and unique DC four-wire with complementary (NO-NC) or dual NO outputs
Reliably detect metal targets at up to three times the range of conventional shielded or unshielded tubular inductive sensors
Quality construction using a stainless steel barrel, 360-degree dual-color LED indicator, Ryton® impact-resistant face cap and vibration-absorbing potting compound
Auto-configure technology automatically detects a sinking (NPN) or sourcing (PNP) connection and switches the sensor accordingly, without any user intervention
Exclusive SmartSense embedded microprocessor technology allows for customizable range, band sensing, nuisance metal rejection, timing delays and over/under speed detection
Optional computer programming cable and Windows-based ProxView configuration software makes it easy to customize sensors
Withstands high electrical noise (up to 20 V/m)
Resistant to extreme temperatures (–40 °F [–40 °C])
