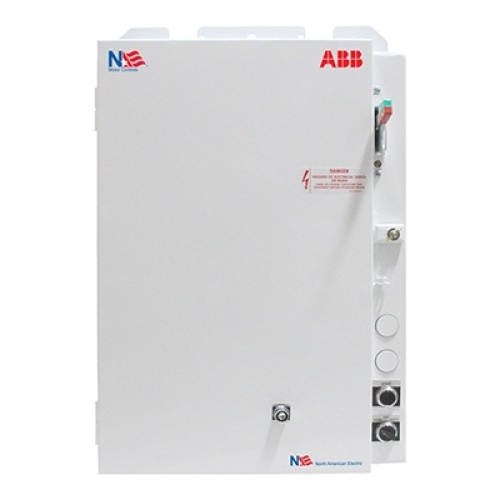

NAE ATL-IRR-460-N4-FUSD-STD ATL Starter - 100 HP, 480 VAC
Normally In Stock
Code: 359727
NAE ATL-IRR-460-N4-FUSD-STD - 60 - 100 HP, 480V, NEMA Size 4, 30 - 150 Amps, NEMA 3R Enclosure, Flanged, Fused Disconnect, Dimensions 42.4'' H, 24.8'' W, 8.6'' D
Condition: New
Usually ships Same Day or Next Day$2781.82
Sale Price
$2318.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE ATL-IRR-460-N4-FUSD-STD - ATL/Irrigation Starter Panel, Package includes: Start Pushbutton, HOA Switch, Overload Reset Button, NEMA 1; Combination Fused w/Flanged Disconnect (Fuses sold separately); NEMA Full Rated Contactor; Interchangable Coils for Easy Field Conversion; Between 240V and 480V (No Special Tools Needed); Solid State Overload; One Overload Covers Entire HP (AMP) Range for each NEMA size; Overload Reset Button; Start Pushbutton; Hand/Off/Auto (HOA) Selector Switch; Accepts Type R Fuses (Fuses sold separately); Service Entry Rated; Fully Gasketed/NEMA 3R /Heavy Duty; Heavy duty mounting ears; Padlockable Door and Disconnect; UL 508A Certified
Specifications
Starter Coil Voltage
480 VAC
Starter Amperage
150 Amp
Component
Across the Line Starter
Manufacturer
NAE
Starter NEMA Size
NEMA 3R
Starter Disconnect Type
Fused
Starter Horsepower
100 HP
Features
NEMA 1
Combination Fused w/Flanged Disconnect (Fuses sold separately)
NEMA Full Rated Contactor
Interchangable Coils for Easy Field Conversion
Between 240V and 480V (No Special Tools Needed)
Solid State Overload
One Overload Covers Entire HP (AMP) Range for each NEMA size
Overload Reset Button
Start Pushbutton
Hand/Off/Auto (HOA) Selector Switch
Accepts Type R Fuses (Fuses sold separately)
Service Entry Rated
Fully Gasketed/NEMA 3R /Heavy Duty
Heavy duty mounting ears
Padlockable Door and Disconnect
UL 508A Certified
