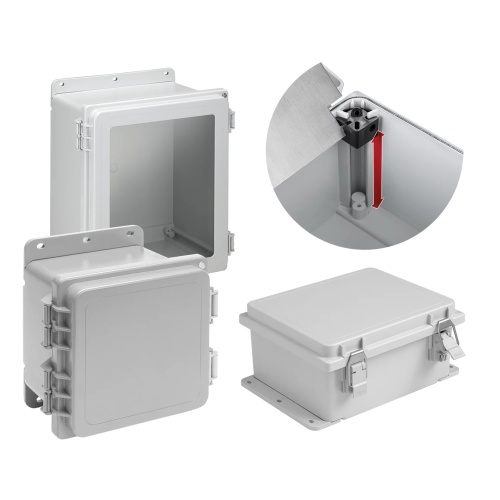

Hoffman A664PHCW Non-Metallic Window Polyester Enclosure
Normally In Stock
Code: 3772
Hoffman A664PHCW Enclosure 6.12 x 6.12x 4.38 inch (HxWxD) POLYPRO Polyester Window Type 4x Enclosure, hinged with removable snap hinges. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$218.57
Sale Price
$182.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Hoffman A664PHCW Enclosure 6.12 x 6.12x 4.38 inch (HxWxD) POLYPRO Polyester Window Type 4x Enclosure, hinged with removable snap hinges.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Door Type
Window
Enclosure Composition
Polyester
Enclosure Depth
4.38"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
6"
Line
PolyPro
Manufacturer
Hoffman
Enclosure Mount Type
Wall Mount
Enclosure Height
6"
Enclosure Latch Type
Screw
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Features
Recyclable
Resists cracking and provides excellent impact resistance
Lighter-weight than fiberglass
Easy, dustless in-field modifications using standard tools
Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
Non-glass-filled polyester material offers superior UV resistance, eliminates fiberbloom associated with fiberglass
Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
Optional cover screws included with all models
Molded-in embosses for rear panel mounting
Molded layout grid on inside of body and solid covers assists with component mounting
Removable snap-hinge cover allows for easy access to cover and body for modifications
Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
Scratch-resistant polycarbonate windows
Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Downloads
Hoffman A664PHCW 2D DXF CAD.zipHoffman A664PHCW 3D STEP CAD.zipHoffman A664PHCW CAD Drawing.zipHoffman A664PHCW CSA Certification.pdfHoffman A664PHCW Declaration of Compliance.pdfHoffman A664PHCW EU Certification.pdfHoffman A664PHCW Instruction Manual.pdfHoffman A664PHCW Spec Sheet.pdfHoffman A664PHCW UL Certification.pdfHoffman A664PHCW User Manual.pdf
