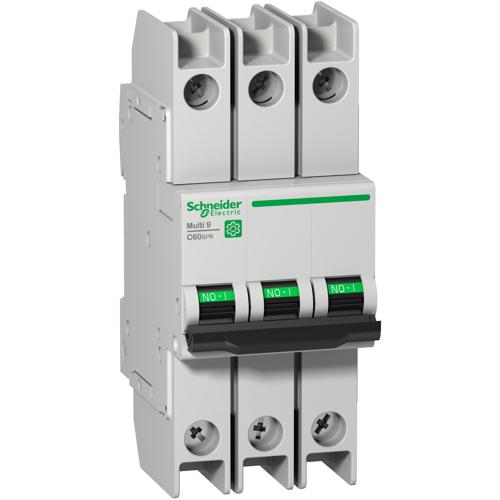

Schneider Electric M9F53330 Miniature Circuit Breaker MCB C60BPR
Normally In Stock
Code: 37958
Schneider Electric M9F53330 Multi 9 Miniature 30 Amp Three Pole Branch Breaker with up to 440 VAC and Din Rail mount. D Curve 10-14 x Amp Rating Protection.
Condition: New
Usually ships Same Day or Next Day$365.83
Sale Price
$304.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The Multi9 C60BPR is a low voltage miniature circuit breaker designed for industrial and residential use, offering enhanced protection against short circuits, earth leakage, and overload, with a rating of 30A at 415VAC, and meeting standards such as EN/IEC 60947-2.
Specifications
Breaker Type
Branch Circuit Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Switching Type
Thermomagnetic
Breaker UL Rating
UL 489 Listed
Breaker Number of Poles
Three Pole
Breaker Trip Speed
Slow Trip
Breaker Protection For
High Inrush Current
Breaker Overcurrent Protection Rating
D Curve 10-14 x Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
480 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB)
It is a 3P circuit breaker with 3 protected poles, 30A rated current and D tripping curve
The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard
This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2
It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats
This product protects from short circuit, earth leakage and overload
This product is dedicated for original equipment manufacturers (OEM) and control panel builders
It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 240VAC
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 6kV
The product can be clipped on a DIN rail
Its width is 6 pitches of 9mm
Pollution degree is 3
The product colour is light grey (RAL7035)
The dimensions are (W) 54mm x (H) 127mm x (D) 72mm
It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals
The operating temperature is -30°C to 70°C
The storage temperature is -40°C to 80°C.
