Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

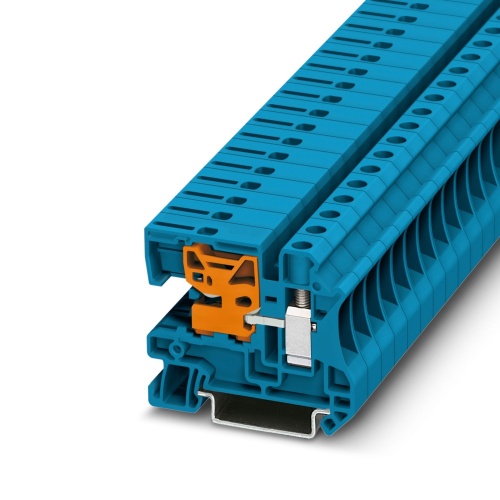

Phoenix Contact 3245040 N disconnect terminal block UTN 10
Normally In Stock
Code: 41138
UTN 10 Phoenix Contact 3245040 N disconnect Terminal Block - UTN 10 Screw Connection 1 Level 10.2 mm with 1 Connections. Not Grounded, Not Fused Blue. 400 Volt, 57 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$5.39
Sale Price
$4.49
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3245040 To secure the neutral busbar in place, support brackets must be installed at the start and end of each terminal strip as well as every 20cm on longer strips. These brackets are available for purchase online from Phoenix Contactcontact.com and are specifically designed for disconnection of the neutral conductor. The recommended specifications include a nominal voltage of 400V, a nominal current of 57A, screw connection with a rated cross-section of 10mm² to 16mm², and come in two mounting types: NS35/7.5 and NS35/15, with a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Installation terminal block
Sub Component
N Disconnect Terminal Block
Downloads
Phoenix 3245040 CAD data International.dxfPhoenix 3245040 CAD data International.pdfPhoenix 3245040 CAD data International.stpPhoenix 3245040 Manufacturers declaration English.pdfPhoenix 3245040 Manufacturers declaration International.pdfPhoenix 3245040 Safety note English.pdfPhoenix 3245040 Tender Text English.zip
