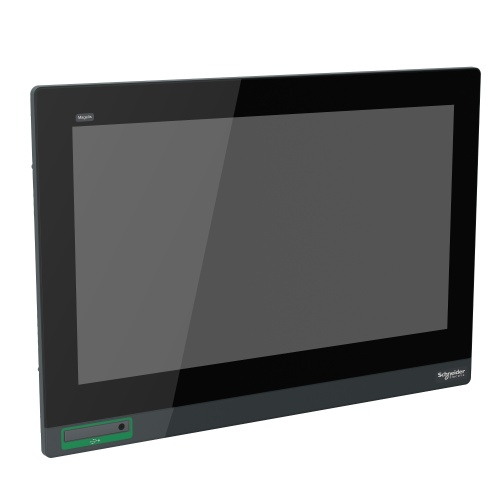

Schneider Electric HMIDT952 Touch Screen Display Features
Normally In Stock
Code: 41424
Schneider Electric HMIDT952 HMI GTU Smart Touch Screen 18.5 inch Display uses 12 VDC-24 VDC with a max power consumption of 19 Watts. This Screen has a display resolution of 1366 x 768 pixels and has dimensions of 13.27 in x 19.02 in x 2.72 in (HxWxD). This Screen mounts Flush a
Condition: New
Usually ships Same Day or Next Day$6480.00
Sale Price
$5400.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The touch screen display features a 18.5inch color TFT LCD display, supporting 1366 x 768 pixels FWXGA resolution, and comes with integrated USB connections, including type A and mini B, utilizing multi-touch projected capacitive technology for 50 million cycles. It boasts 16 million colors and a 50,000 hour backlight lifespan, is IP66/IP67 and NEMA 4X rated, and has dimensions of 483mm x 69mm x 337mm, weighing 6.8kg, making it suitable for various industrial applications such as complex machines and conveying systems, while meeting several industry standards including UL 508 and IEC 61132-2.
Specifications
HMI & PC Mounting Location
Flush Mount
HMI & PC Supply Voltage DC
24 VDC
HMI & PC Display Color
Full Color
HMI & PC UL Certification
UL 508
HMI & PC NEMA Rating
NEMA 4X
HMI & PC Connection Type
1 USB 2.0 type A
HMI & PC Connection Type
1 USB 2.0 type mini B
HMI & PC Supply Voltage DC
12 VDC
HMI & PC Product Line
GTU
HMI & PC Max Power Consumption
19 Watts
HMI & PC Screen Display Resolution
1366 x 768
Manufacturer
Schneider Electric
HMI & PC Screen Display Size
18.5"
HMI & PC Depth
2.75"
HMI & PC Height
13.25"
HMI & PC Width
19"
HMI & PC Interface
Touchscreen Interface
Component
Smart touchscreen
Features
Flexible offer with transparent communication to all devices
Resistant to water and dust as per IP67 protection
State of the art wireless security protocols WEB/WPA/WPA2
