Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

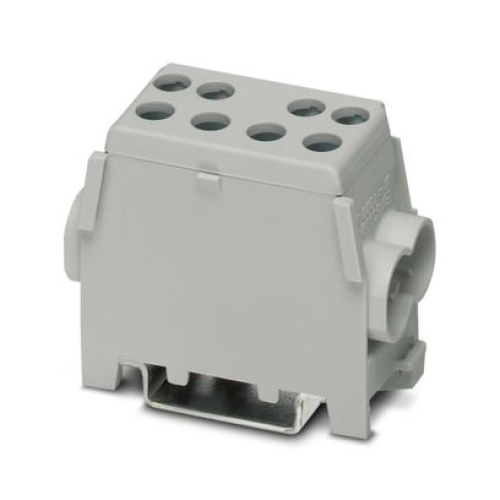

Phoenix Contact 3071350 Trunk line branch terminal UDB 2X35/25 GY
Normally In Stock
Code: 41466
UDB 2X35/25 GY Phoenix Contact 3071350 Trunk line branch Terminal - UDB 2X35/25 GY Screw Connection 1 Level 27 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$30.59
Sale Price
$25.49
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3071350 The trunk line's branch terminal has a nominal voltage of 400V and a nominal current of 125A, with four connections available at one position that utilize a screw connection method. The rated cross-section is 35mm2, spanning from 10mm2 to 35mm2, and features a second level with a smaller cross-section of 1.5mm2 to 25mm2, characterized by the same screw connection type.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
27 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
8
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
