Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

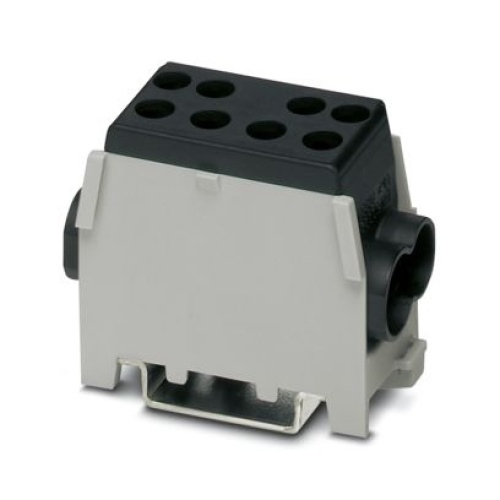

Phoenix Contact 3071351 Trunk line branch terminal UDB 2X35/25 BK
Normally In Stock
Code: 41467
UDB 2X35/25 BK Phoenix Contact 3071351 Trunk line branch Terminal - UDB 2X35/25 BK Screw Connection 1 Level 27 mm with 4 Connections. Not Grounded, Not Fused Black. 400 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$29.83
Sale Price
$24.86
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3071351 The specified terminal has a trunk line branch configuration with a nominal voltage of 400V and a maximum current capacity of 125A, featuring four connections and one position that utilizes a screw connection method for mounting, with rated cross-sectional areas ranging from 10mm2 to 35mm2 in two levels, using NS 35/7.5 and NS 35/15 mounts, and has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
27 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
8
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
