Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

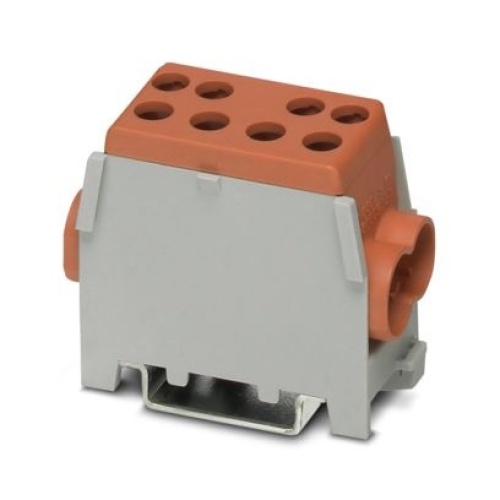

Phoenix Contact 3071352 Trunk line branch terminal UDB 2X35/25 BN
Normally In Stock
Code: 41468
UDB 2X35/25 BN Phoenix Contact 3071352 Trunk line branch Terminal - UDB 2X35/25 BN Screw Connection 1 Level 27 mm with 4 Connections. Not Grounded, Not Fused Brown. 400 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$29.83
Sale Price
$24.86
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3071352 The terminal is a trunk line branch with a nominal voltage of 400V and a nominal current capacity of 125A, featuring four connections and one position, secured via screw connection and available in two cross-section sizes: 10-35mm2 for the main level and 1.5-25mm2 for the secondary level, mounted using type NS 35/7.5 or NS 35/15 and characterized by a brown color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
27 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Component Color
Brown
Terminal Block Min Wire Size
8
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
