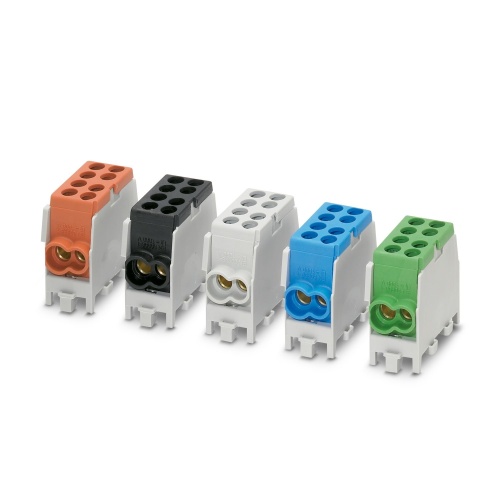

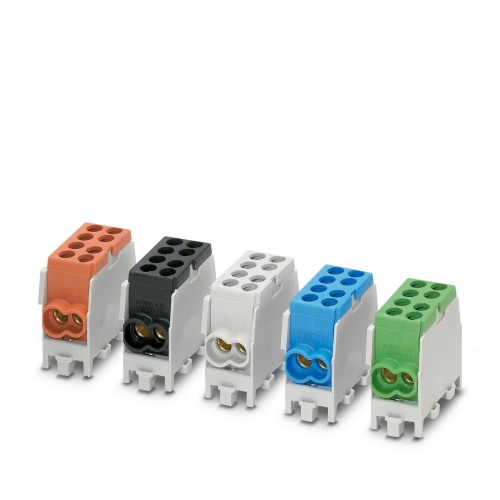

Phoenix Contact 3071355 Trunk line branch terminal UDB 2X25/16 GY
Normally In Stock
Code: 41471
UDB 2X25/16 GY Phoenix Contact 3071355 Trunk line branch Terminal - UDB 2X25/16 GY Screw Connection 1 Level 23 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 101 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$16.64
Sale Price
$13.87
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

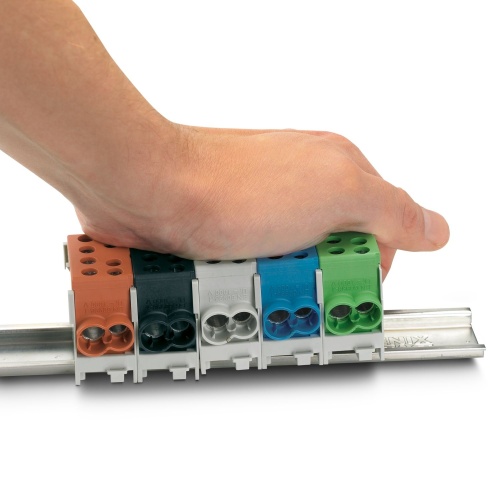

Phoenix Contact 3071355 The specified terminal has a trunk line branch configuration with a nominal voltage of 400V and a nominal current of 101A, featuring four connections and one position, secured by a screw connection at two levels, the cross-sectional area ranging from 1.5 to 25mm2, and is mounted using type NS35/7.5 or NS35/15, with a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
23 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
8
Terminal Block Amperage
101 Amp
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
