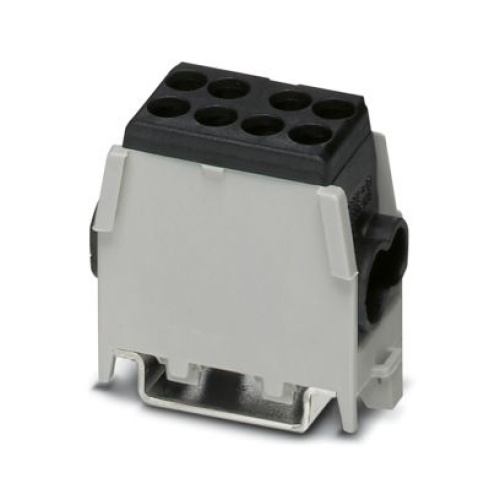

Phoenix Contact 3071356 Trunk line branch terminal UDB 2X25/16 BK
Normally In Stock
Code: 41472
UDB 2X25/16 BK Phoenix Contact 3071356 Trunk line branch Terminal - UDB 2X25/16 BK Screw Connection 1 Level 23 mm with 4 Connections. Not Grounded, Not Fused Black. 400 Volt, 101 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$16.64
Sale Price
$13.87
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3071356 A branch terminal with a trunk line has a nominal voltage of 400 V and carries a nominal current of 101 A, featuring four connections and one position secured by a screw connection. The rated cross-sectional area is between 1.5 mm2 to 25 mm2, with two levels: the lower level spans from 1.5 mm2 to 16 mm2, while the upper level has no specified range, mounted using type NS 35/7.5 and type NS 35/15, and colored black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
23 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
8
Terminal Block Amperage
101 Amp
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
