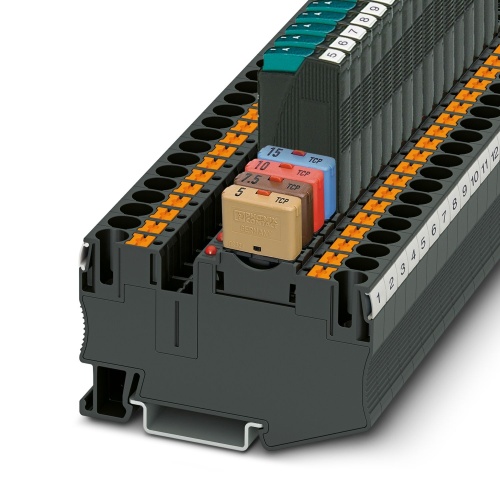

Phoenix Contact 3212166 Fuse modular terminal block PT 6-FSI/C
Normally In Stock
Code: 41657
PT 6-FSI/C Phoenix Contact 3212166 Fuse modular Terminal Block - PT 6-FSI/C Push-In Connection 1 Level 8.2 mm with 2 Connections. Not Grounded, Fused Black. 400 V, 30 A max rating.
Condition: New
Usually Ships Same day or Next Day$15.30
Sale Price
$12.75
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3212166 The fuse terminal block is a modular unit with two types of fuses: Blade and Type C, rated for up to 2.2W maximum power consumption. It operates within a nominal voltage of 400V and can handle a nominal current of 25A. The connection method is via push-in connectors, while the rated cross-sectional area ranges from 0.5mm² to 10mm². This terminal block has two standard mounting types: NS35/7.5 and NS35/15, with a color designation of black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Push-in Connection
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Component Color
Black
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
25 Amp
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Terminal Block Fuse Type
Type C - max. 2.2 W
