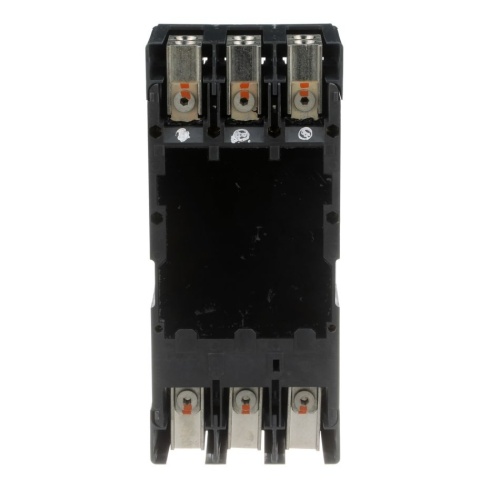

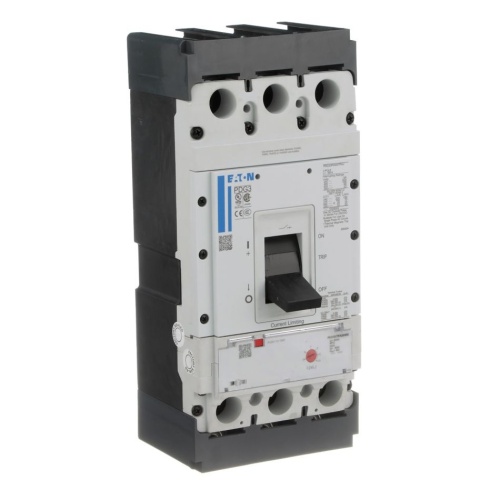

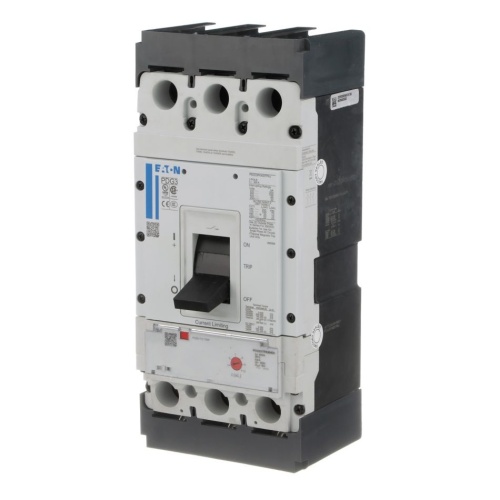

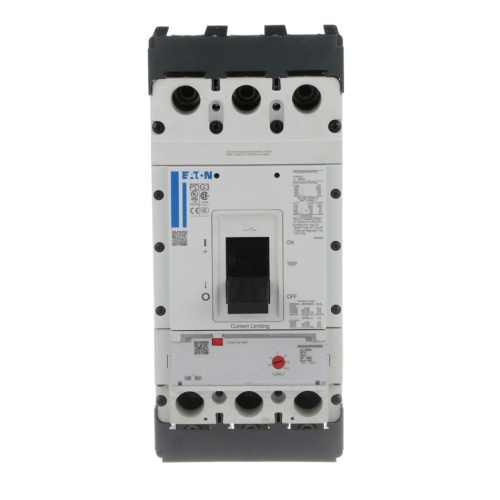

Eaton PDG33P0150TFAL - MCCB 3P, 150 Amp, 600 VAC, 3 Frame
Normally In Stock
Code: 421499
Eaton PDG33P0150TFAL - Frame 3, Three Pole, 150A, 100kA/480V, Thermal Magnetic (Fxd-Adj) Trip Unit, Std Term Load Only (PDG3X3TA300)
Condition: New
Usually ships Same Day or Next Day$5985.06
Sale Price
$4987.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PDG33P0150TFAL - The Power Defense Molded Case Circuit Breakers in Frame Size 3 cover a broad current range from 45 A to 600 A and come with a variety of trip units, including PXR electronic trip units and fixed-adjustable thermal-magnetic trip units. They are available in two versions, featuring 400 A and 600 A constructions for optimized performance across diverse applications. Frame Size 3 is versatile, addressing circuit protection and power distribution needs, including ground fault protection, current-limiting, 100% UL ratings, and high instantaneous settings for selective coordination. The PXR trip units in PD-3 offer comprehensive protection, energy metering, communication capabilities, breaker health indication, and options for arc flash reduction. These breakers are modular, providing flexibility to customers with options for complete breakers or modular components, including frames, trip units, accessories, and terminals. They adhere to stringent standards and certifications, including UL, CSA, IEC (CE), and CB (CCC). - 10.1" x 5.5" x 4.3" (HxWxD)
Specifications
Amperage (Molded Case Breaker)
150 Amp
Poles (Molded Case Breaker)
Three Pole
Maximum Voltage (Molded Case Breaker)
600 VAC
UL Listing (Molded Case Breaker)
UL 489
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 600 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 480 Volt
Manufacturer
Eaton
Frame Type (Molded Case Breaker)
3 Frame
Trip Unit Type
T-M (Fxd-Adj) TU
Features
Globally accepted platform in a number of industry standards including UL®, CSA,IEC, and CCC.
Power Xpert Release trip units offer features such as Breaker Health, multiple Load Alarms, and Ground Fault Alarm to help avoid costly downtime through predictive and preventative maintenance.
Arcflash Reduction Maintenance System helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity.
The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance.
Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring.
Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
